Product Description
Brief Introduction - Concrete Pump

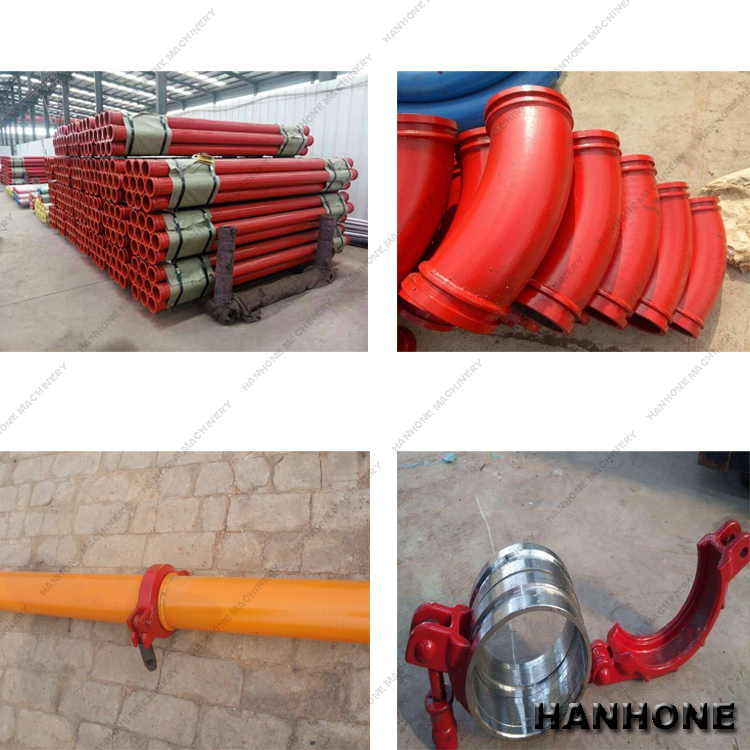

The Concrete Pump is composed of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along pipelines. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump.

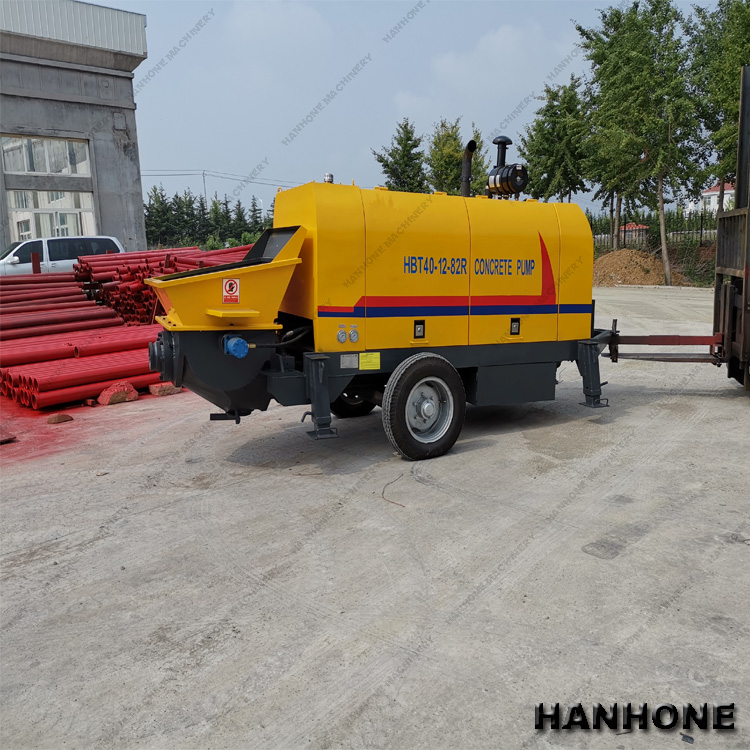

Detailed Images
More Productions Details - Concrete Pumping Machine

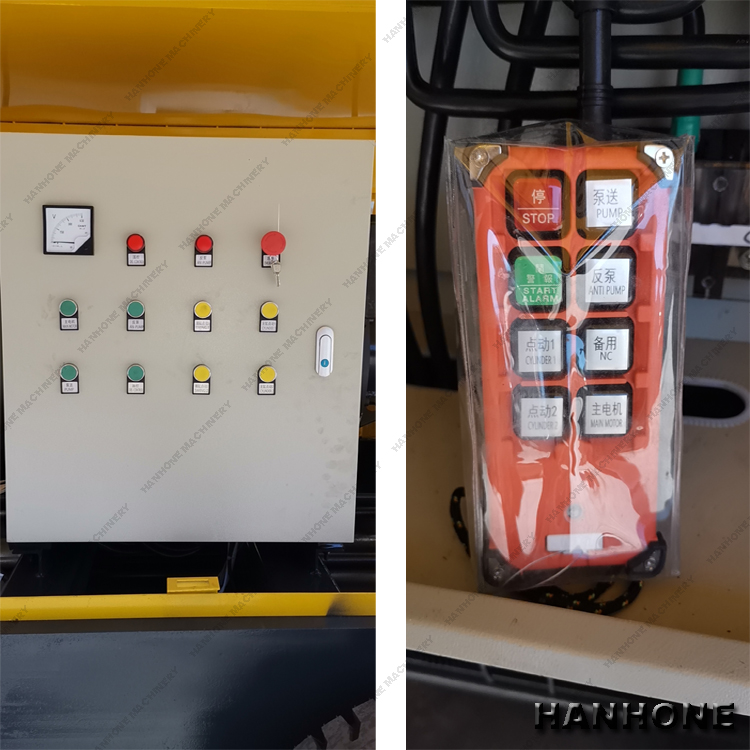

2. Electric Control System
2.1 Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
2.2 The wire remote equipment is convenient for operation far away.

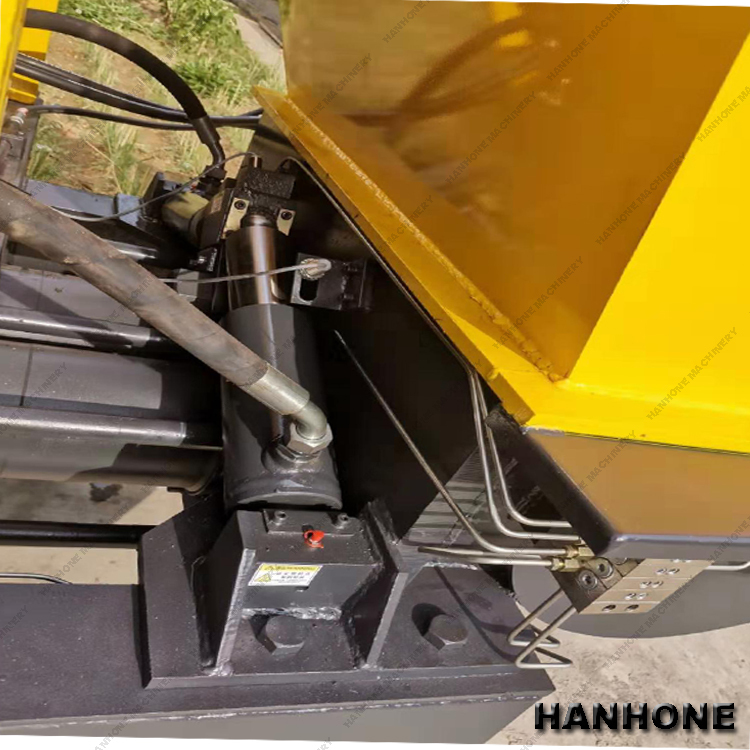

2.3 Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.

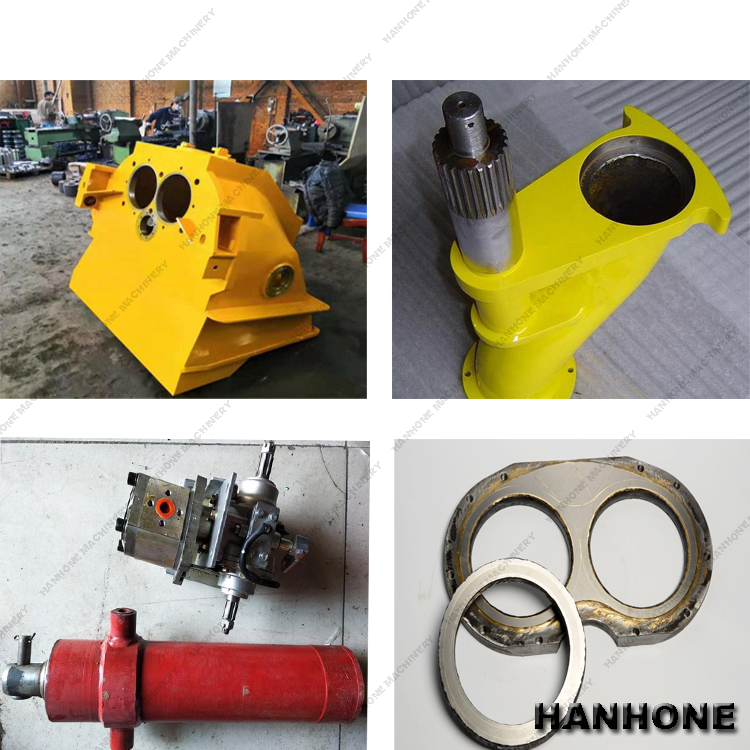

3. Mechanical System

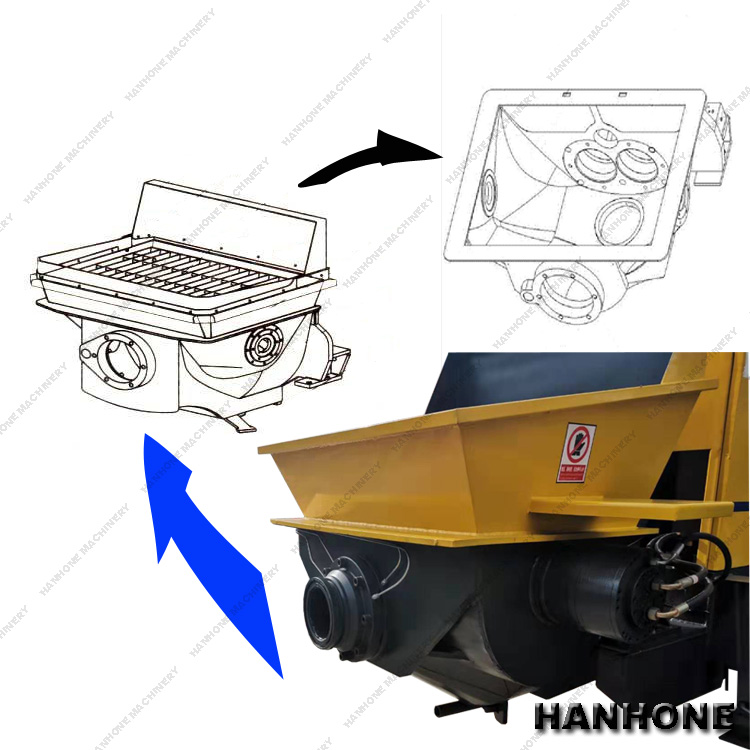

3.1 The design of hopper and S valve and so on adopt I-DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
3.2 The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
3.3 Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be used in lower abrasion. The spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.
4. Lubrication System
The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealing.
5. Cooling System
The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.

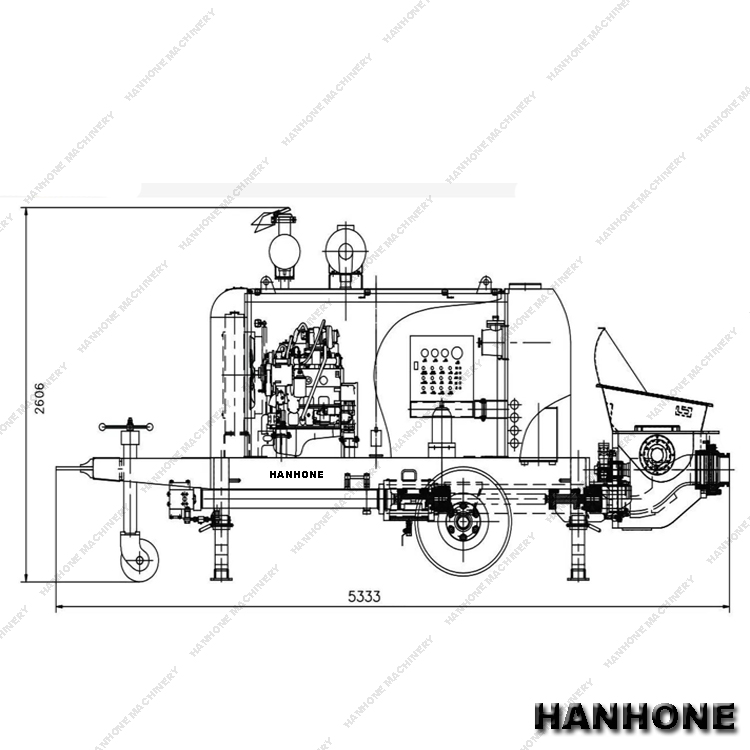

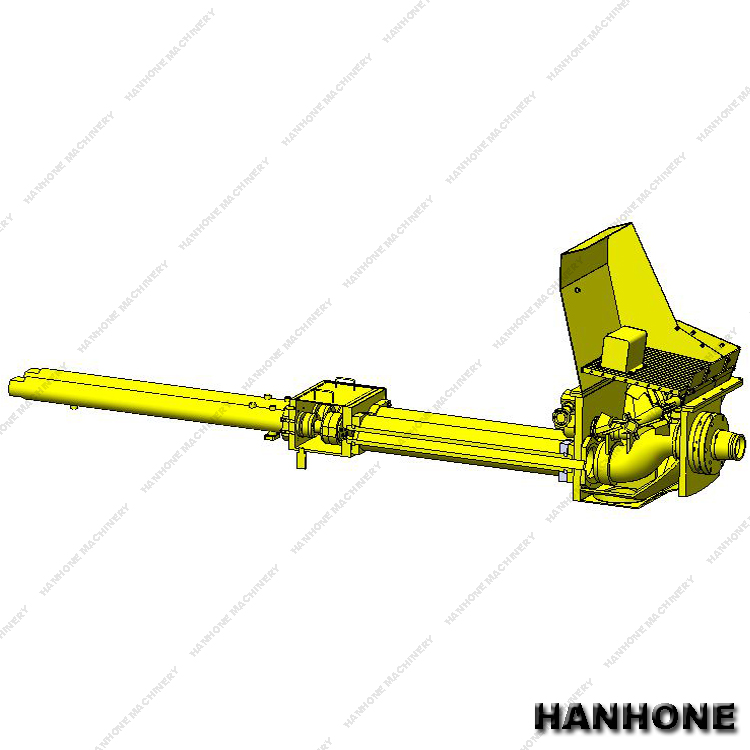

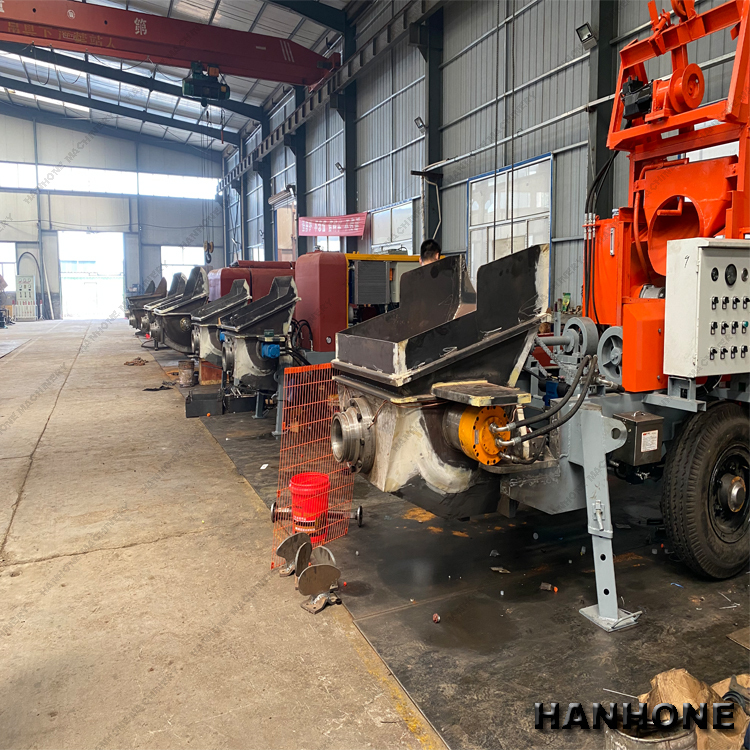

Main Structure - Concrete Pump

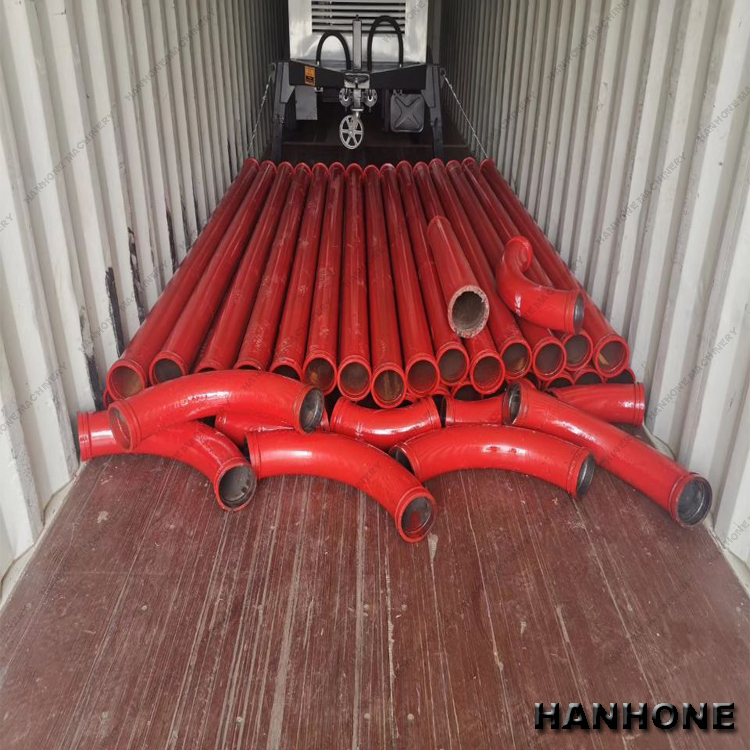

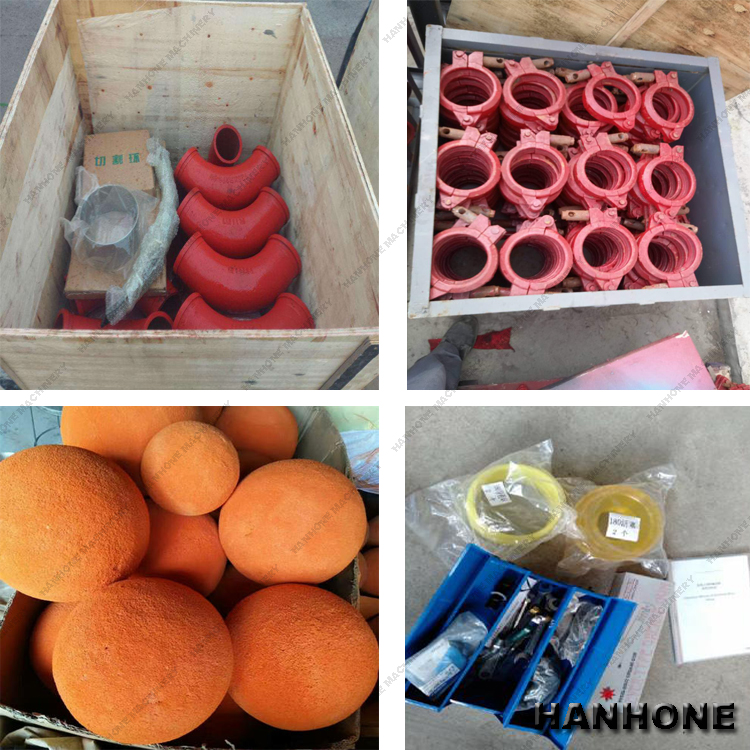

Packaging & Shipping
Delivery - Concrete Pump

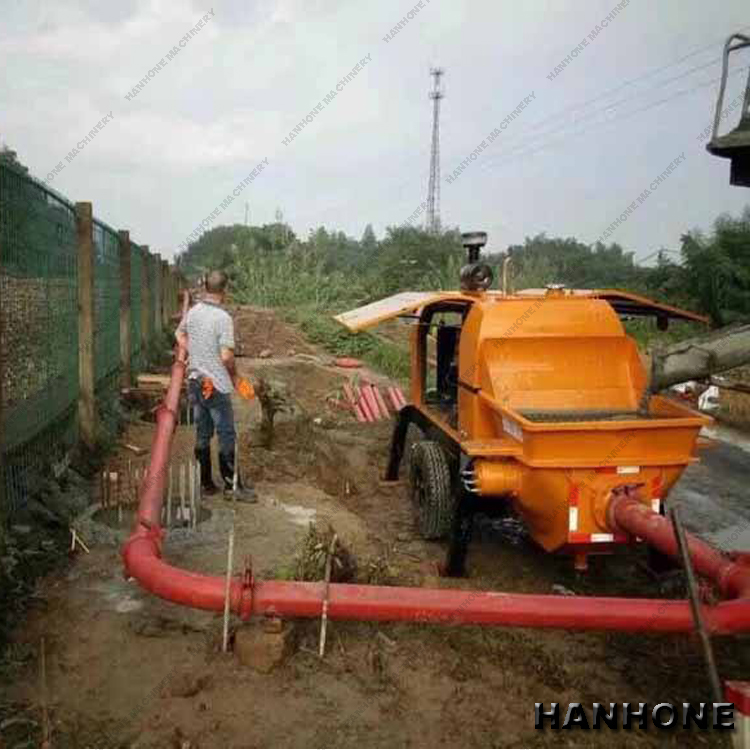

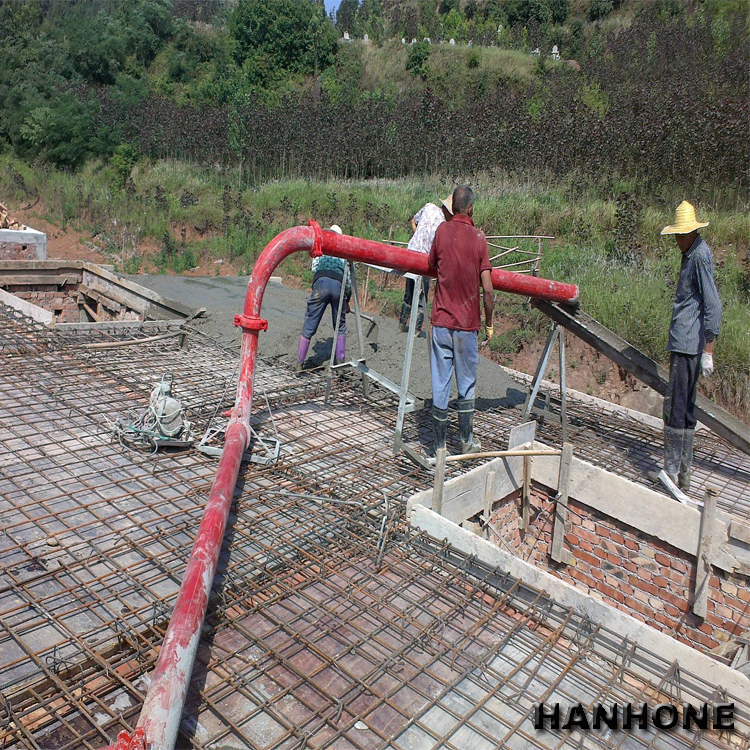

Installation & Working - Concrete Pump
