Products Description

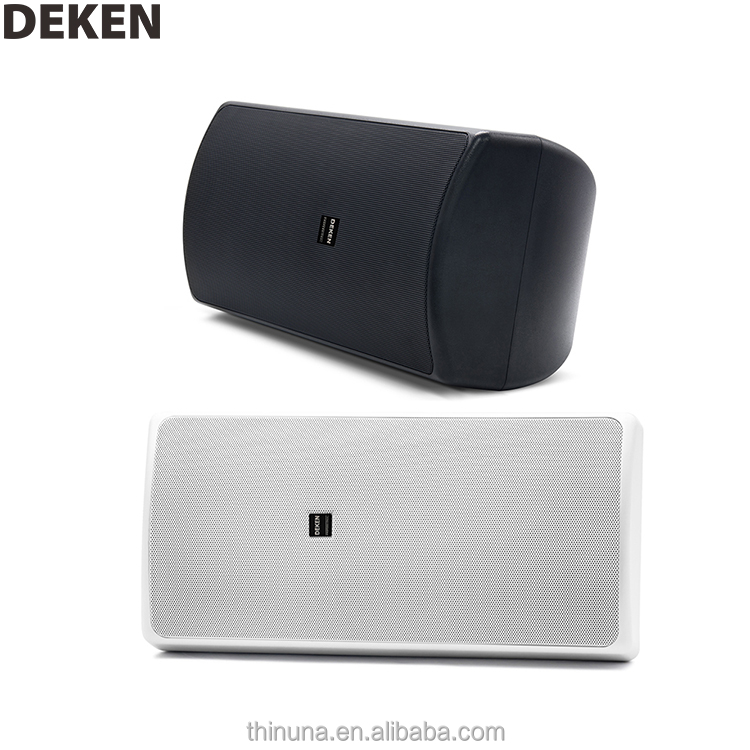

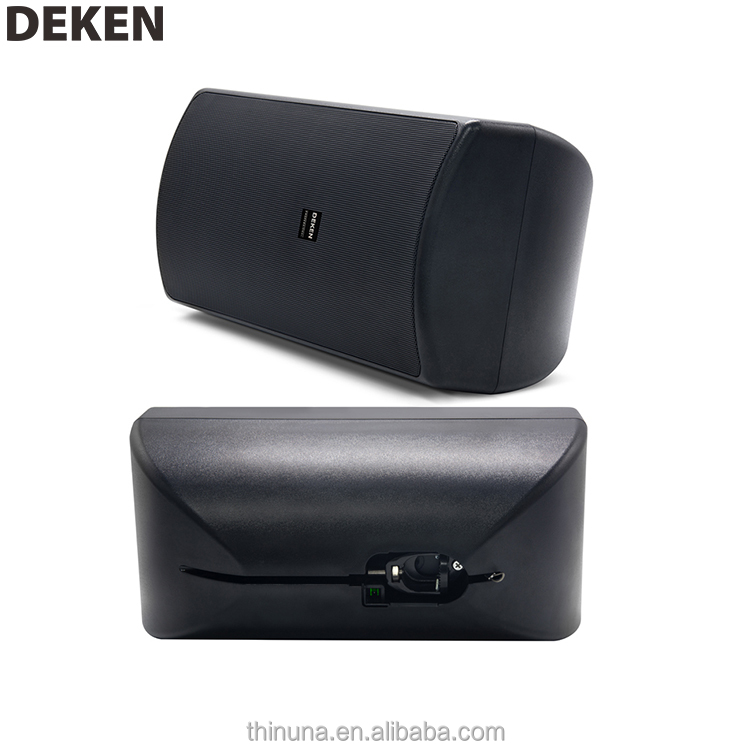

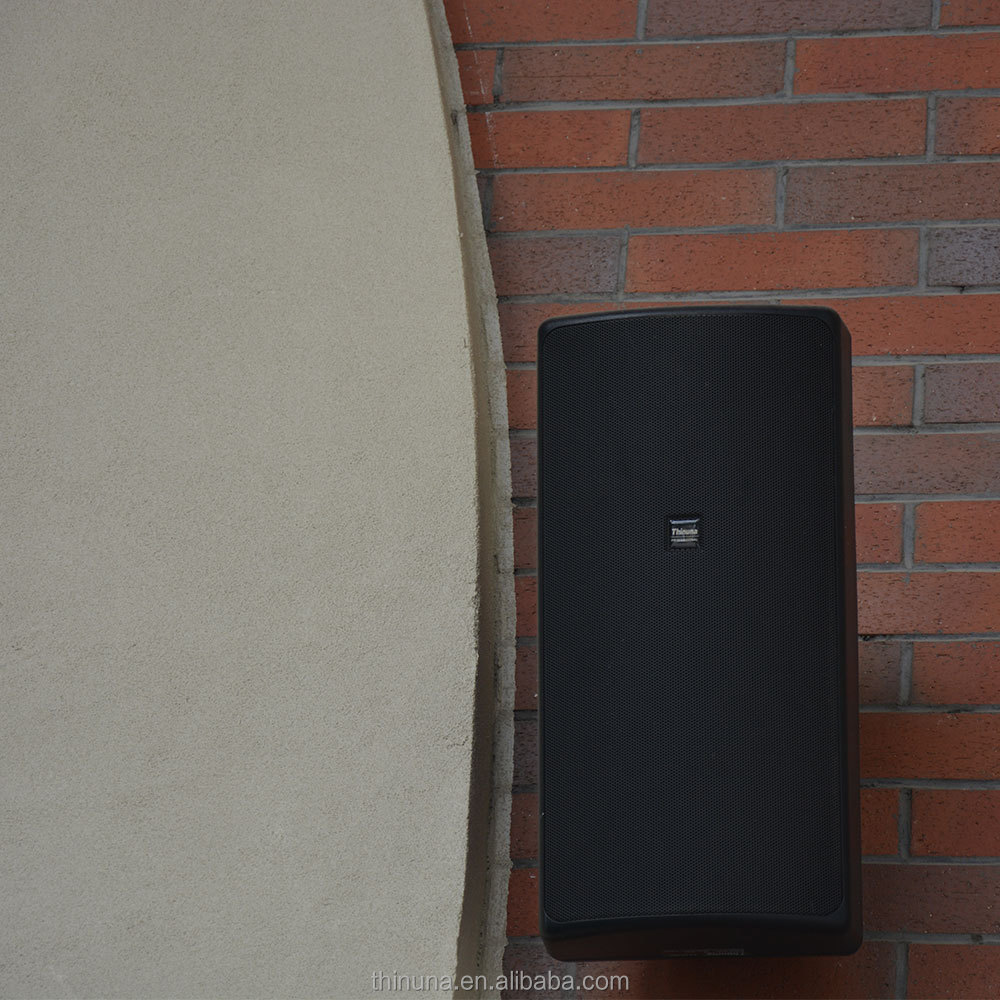

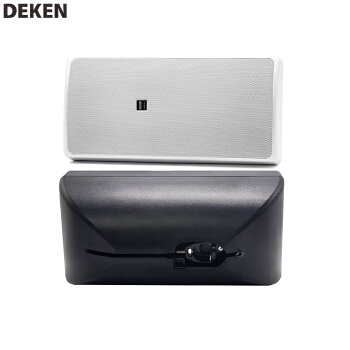

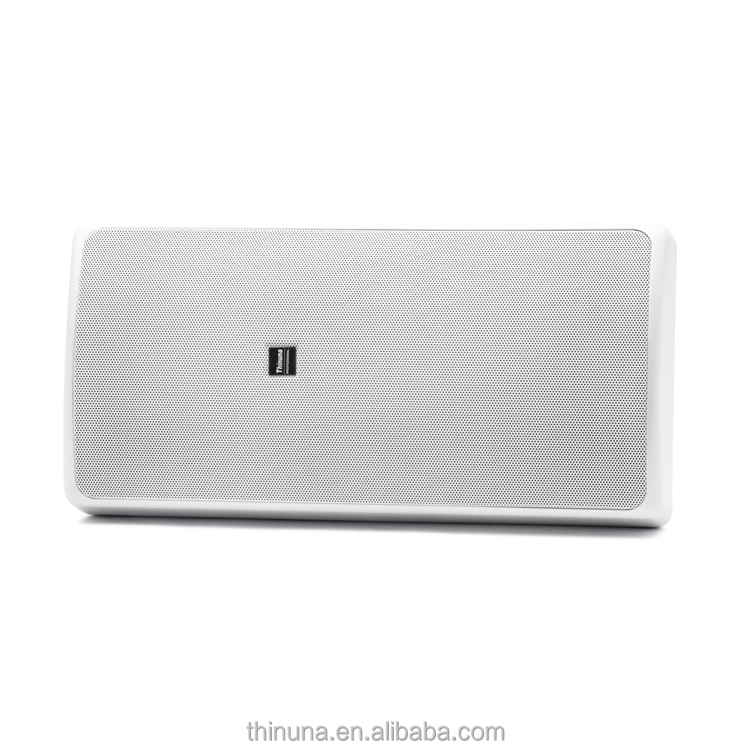

FIT W series are compact waterproof fashion speakers. The use of international advanced mold, thickened high-strength ABS cabinet,and cleverly designed mounting bracket can respond to any installation requirements.
The dustproof and waterproof performance of the speaker is as high as IP55 grade, and it has been subjected to strict waterproof test when leaving the factory. It is widely used in various all-weather environments in pursuit of sound quality, such as commercial pedestrian street, bar street, villa, swimming pool, golf course, sports ground, etc. It also has extraordinary performance in indoor environments such as meeting room, banquet hall, and multi-function hall.
With 100V constant voltage or 8Ω version options. This series of speakers provide a wider range of versatile uses, whether professional audio applications or public broadcasting can be competent.
Optional black and white colors or various spray colors that can be customized at the factory can be adapted to more places. The user-friendly design of the mounting bracket can make the voluminous installation work accurate and fast, save the cost and time of installation, can adjust the angle of the speaker at will, and accurately control the sound field distribution.
Constant voltage version: FIT W5T/FIT W8T
Fixed impedance version: FIT W5L/FIT W8L
Features:
* All-weather speaker with a wide range of applications.
* Dustproof and waterproof grade conforms to IEC529 IP55 standard.
* Stunning and extraordinary sound quality.
* All-weather speaker designed for the professional audio and commercial audio markets.
* Excellent 5’’, 8" coaxial unit.
* The treble is transparent, bright, soft and not irritating.
* The bass is surging, powerful and thick.
* With 100V constant voltage or 8Ω version options.

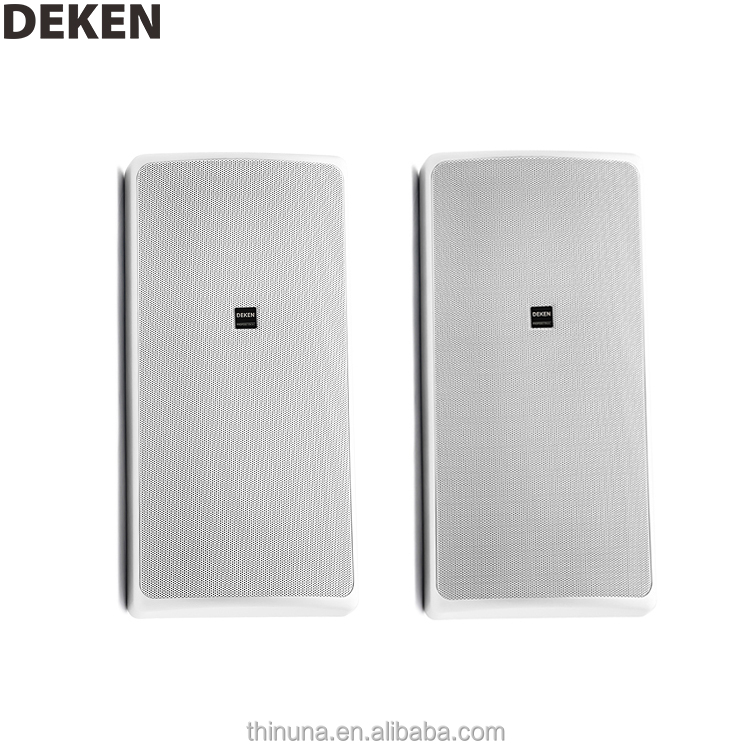

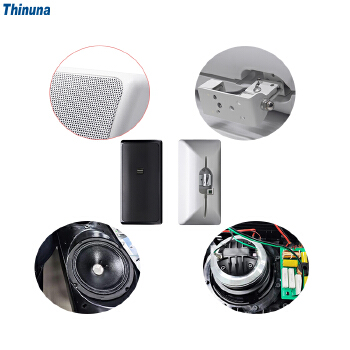

* ABS enclosure and aluminum mesh, optional black and white.Specifically designed gravity cabinet to help improve directionality and versatile installation.

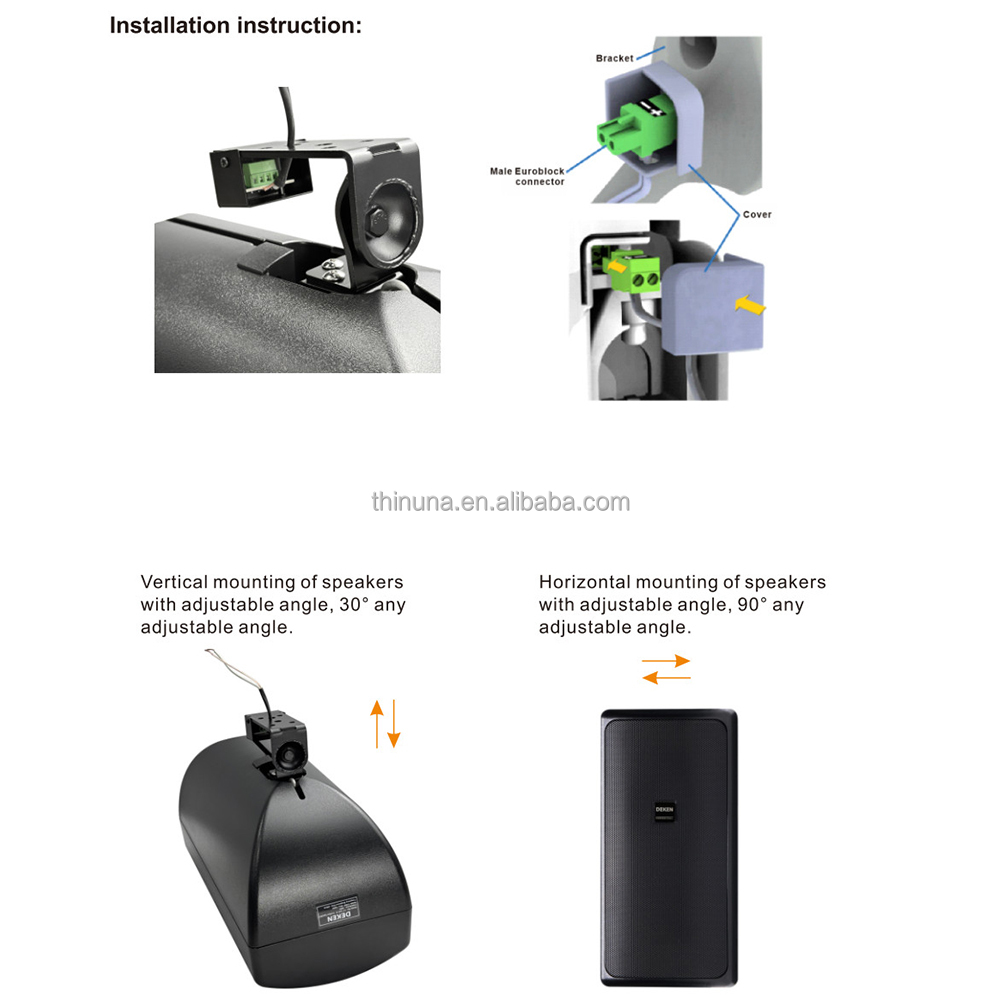

* The hidden mounting bracket provides quick and flexible installation.

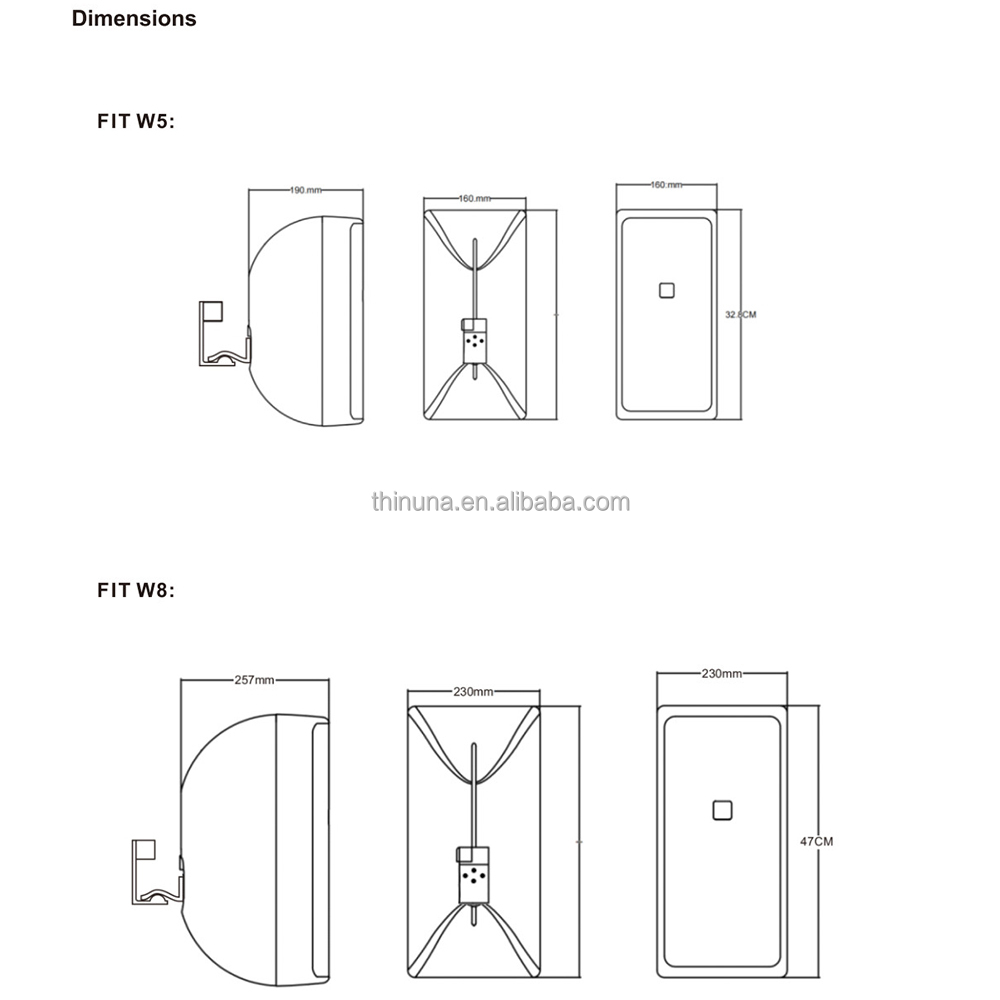

DRAWING & MOUNTING
Model | FIT W5T | FIT W5L | FIT W8T | FIT W8L |
Rated power | 60W@100V | 90W@8Ω | 120W@100V | 180W@8Ω |
Max power | 90W@100V; | 135W@8Ω | 180W@100V; | 270W@8Ω |
SPL(1W / 1m) | 93dB SPL (125 Hz-12.5 kHz @1/3 octave frequency band) | 93dB SPL (125 Hz-12.5 kHz @1/3 octave frequency band) | 95 dB SPL (125 Hz-12.5 kHz @1/3 octave frequency band) | 95 dB SPL (125 Hz-12.5 kHz @1/3 octave frequency band) |
Max SPL (Rated / 1m) | 112 dB SPL@110V | 115 dB SPL@8Ω | 118 dB SPL@110V | 120dB SPL@8Ω |

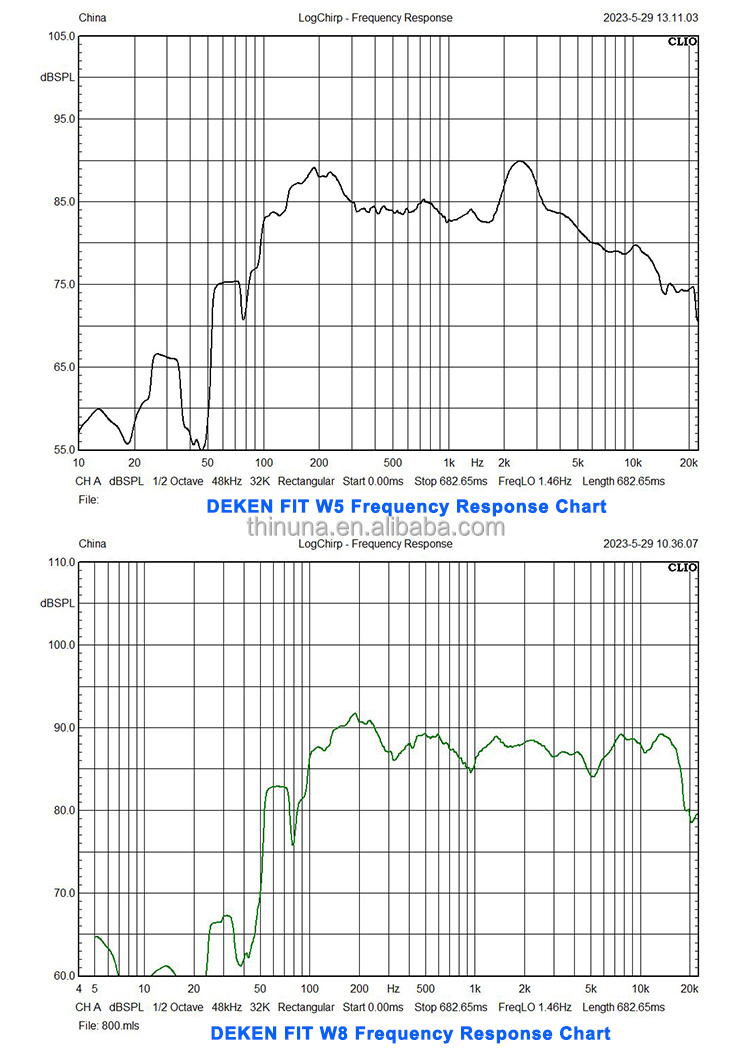

Frequency response (-10dB) | 80Hz~20kHz | 80Hz~20kHz | 70Hz~20kHz | 70Hz~20kHz |
Diffusion Angle (4kHz / 1kHz) | 115 º cone (+46º/-46 º, 500Hz to 6kH) | 115 º cone (+46º/-46 º, 500Hz to 6kH) | 115 º cone (+46º/-46 º, 500Hz to 6kH) | 115 º cone (+46º/-46 º, 500Hz to 6kH) |
Power selection method | Phoenix terminal interface | Phoenix terminal interface | Phoenix terminal interface | Phoenix terminal interface |
Material | Enclosure: ABS; Mesh cover: metal | Enclosure: ABS; Mesh cover: metal | Enclosure: ABS; Mesh cover: metal | Enclosure: ABS; Mesh cover: metal |
Color | FIT W5T B: black; FIT W5T W: white | FIT W5L B: black; FIT W5L W: white | FIT W8T B: black; FIT W8T W: white | FIT W8L B: black; FIT W8L W: white |
Operating temperature/humidity | -30°C ~ 60°C; <95% | -30°C ~ 60°C; <95% | -30°C ~ 60°C; <95% | -30°C ~ 60°C; <95% |
Dustproof and waterproof grade | IEC529 IP55 | IEC529 IP55 | IEC529 IP55 | IEC529 IP55 |
Speaker unit | 5.25" coaxial unit | 5.25" coaxial unit | 8" coaxial unit | 8" coaxial unit |
Dimensions | 160 (W) x 328(H) x 192(D) | 160 (W) x 328(H) x 192(D) | 230 (W) x 470(H) x 257(D) | 230 (W) x 470(H) x 257(D) |
Weight (1 pc) | 5.7kg | 6kg | 8.5kg | 9kg |
Installation | Hidden mounting bracket | Hidden mounting bracket | Hidden mounting bracket | Hidden mounting bracket |
Gross weight | 13.4kg, 2 pcs | 14kg, 2 pcs | 19 kg, 2 pcs | 20 kg, 2 pcs |

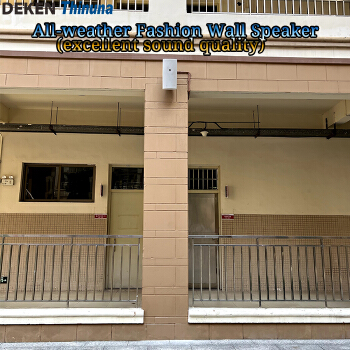

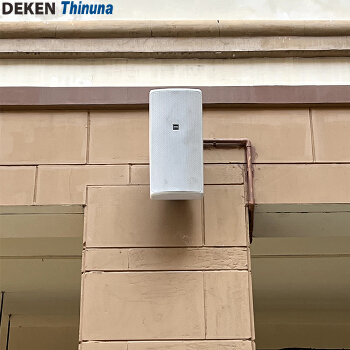

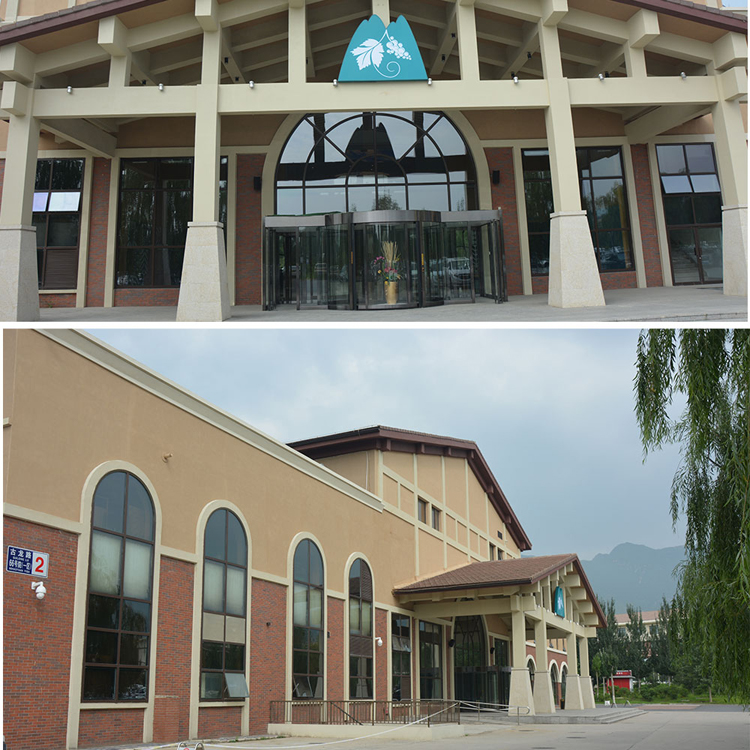

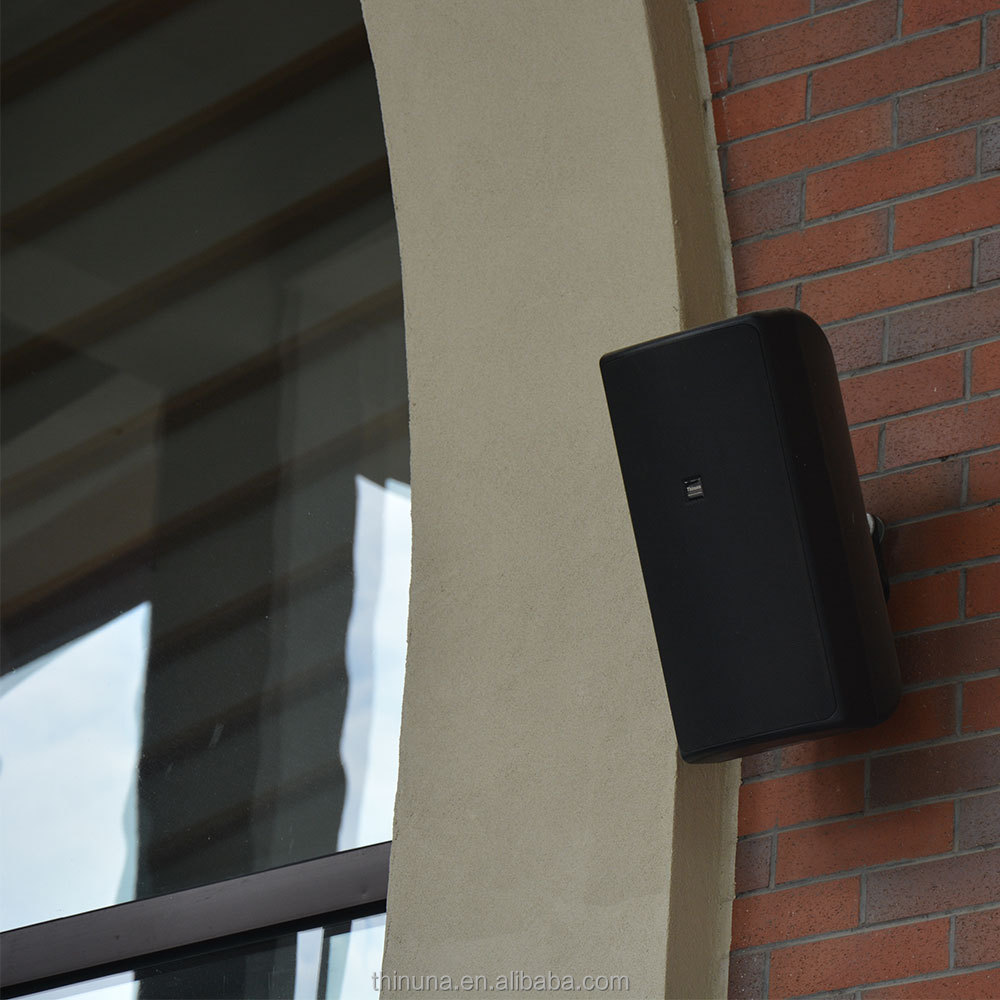

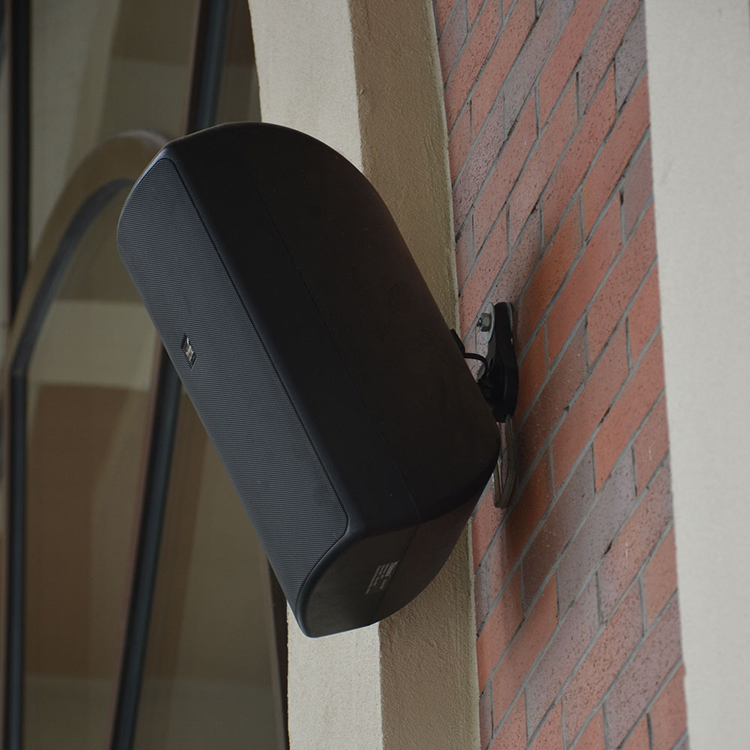

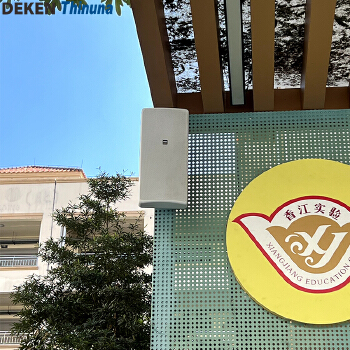

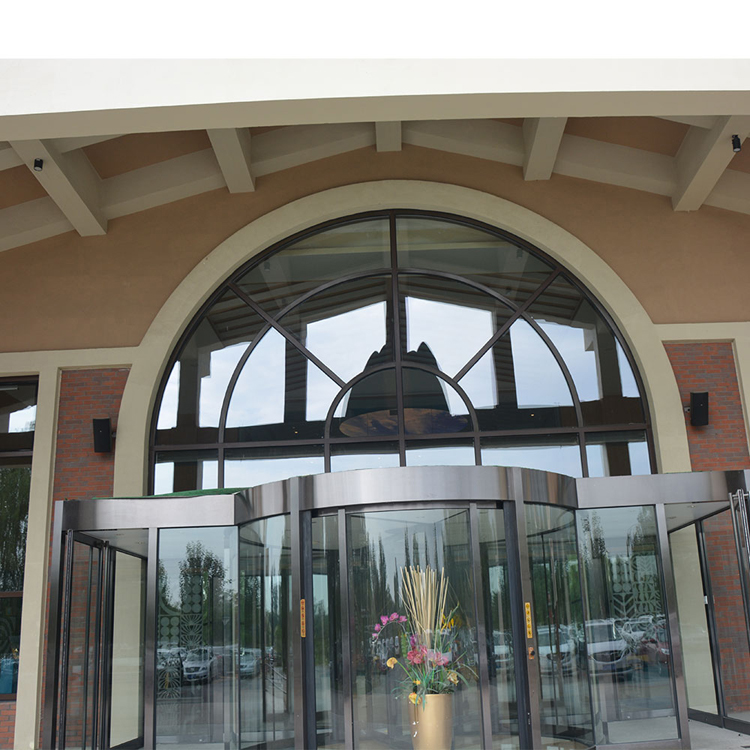

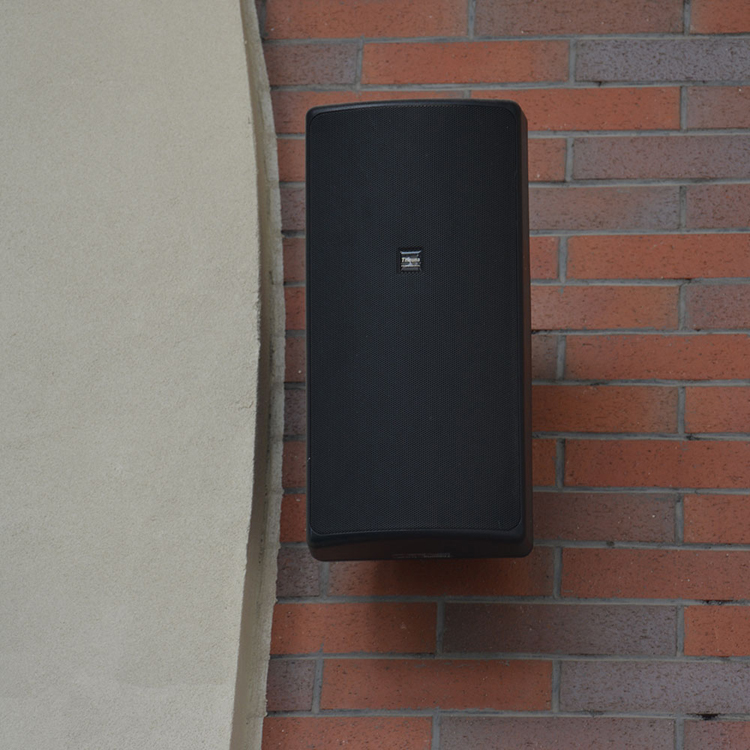

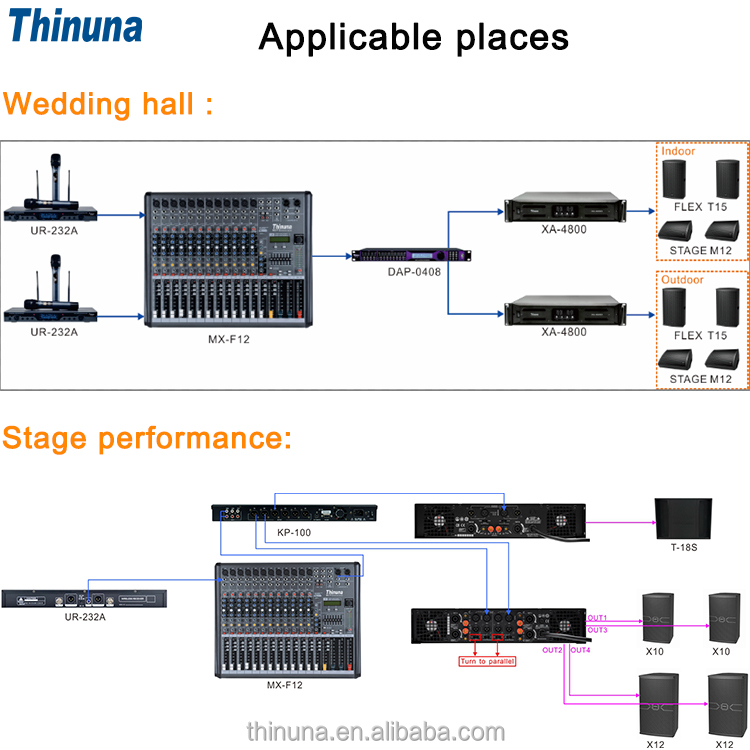

Application Cases
Suitable occasions: Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks,stage performances, dance halls, live audio recording, music screening rooms and other places.......

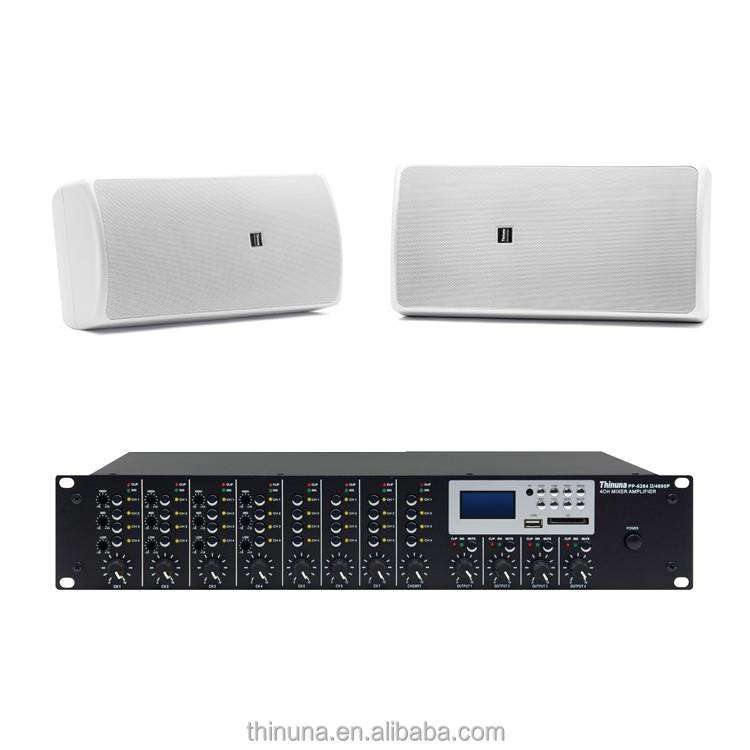

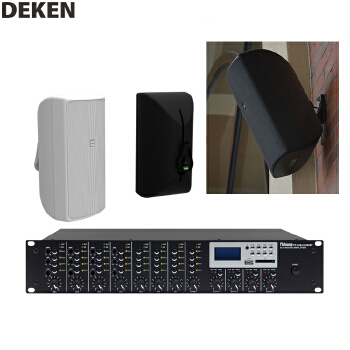

Recommend Products
The main products：
Speaker：Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.Amplifier：Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.Public Address System：IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
About us
Production Flow
Our customer feedback
Packing & Delivery
FAQ
Q: Are you Manufacturer or Trading company?
A: We have more than 20 years experience in researching and manufacturing
Q: Do you have any qualification certificate?
A:Yes, we have the CCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced engineers to design the expected items as you want, we have much experience at ODM.
Q:What is your payment terms?
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12months after shipment
Public Address Speaker：Ceiling Speaker，Pa speaker;Outdoor Wall Speaker，Wall Mount Speaker，indoor and outdoor Column Speaker, Horn Speaker，Conference Speaker，Project speaker,Professional speaker,Active Speaker，Garden Speaker，Subwoofer Speaker,wall hanging speaker, lawn speaker, pendant speaker , audio Loudspeaker;Audio speaker;Wireless speaker;powered speaker;sound speaker;speaker box;subwoofer;sub woofer speaker;line array speaker;volume controller,radio receiver and professional broadcast cabinets etc.
Public Address Amplifier：Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，Mixer Amplifier ,Mixing Consoles , Class D amplifier，Class AB amplifier, Audio amplifier，Professional power Amplifier, Mixer amplifier,Power amplifier,Pure amplifier,Professional amplifier,Amplificadores
de 2000 w para veiculos ，etc.

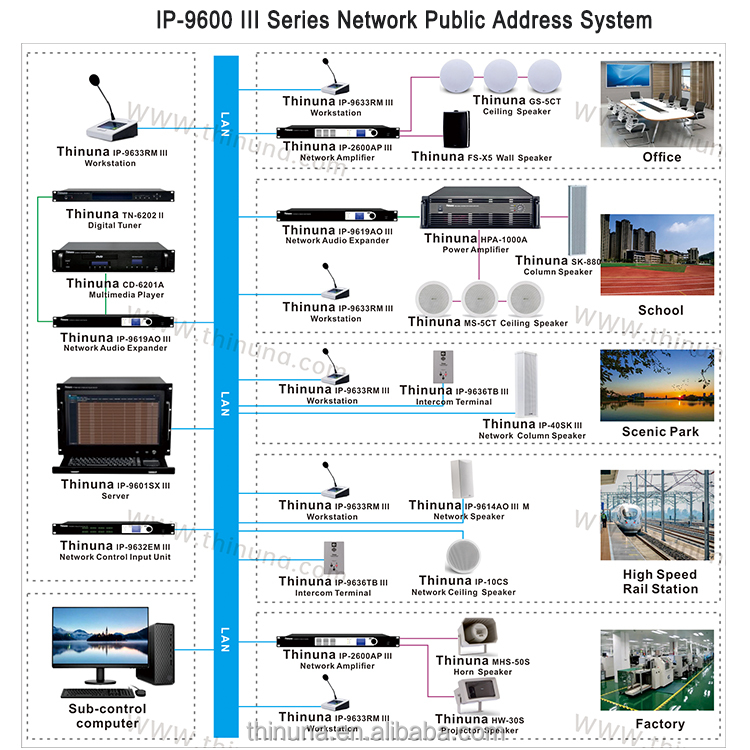

Public Address System：IP network system，IP Network Host，IP Network Soft，，IP Amplifier，IP Speaker，IP wall speaker, IP Horn Speaker , IP ceiling speaker , IP Column Speaker ,IP Microphone;Sound system,audio system;public broadcasting system, fire emergency broadcasting system, the campus computer addressable broadcasting system, digital addressable broadcasting system,conference system，home theatre system;IP pa system;
Products can be widely used in sports venues, stadium,gym;conference and exhibition center; hotel, bar;school, hospital;supermarket, park, sauna, stations, factories, residential,home,villa and
other public places.
