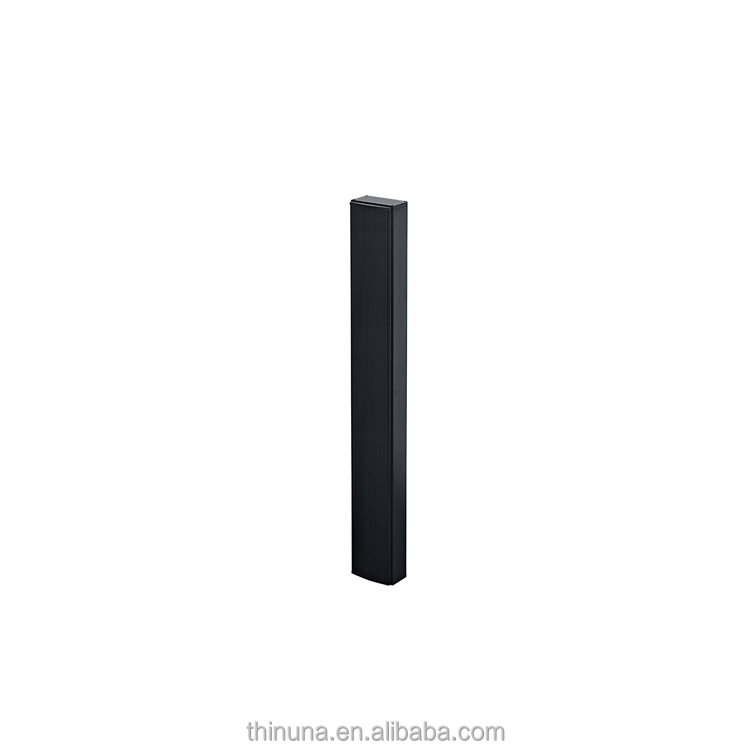

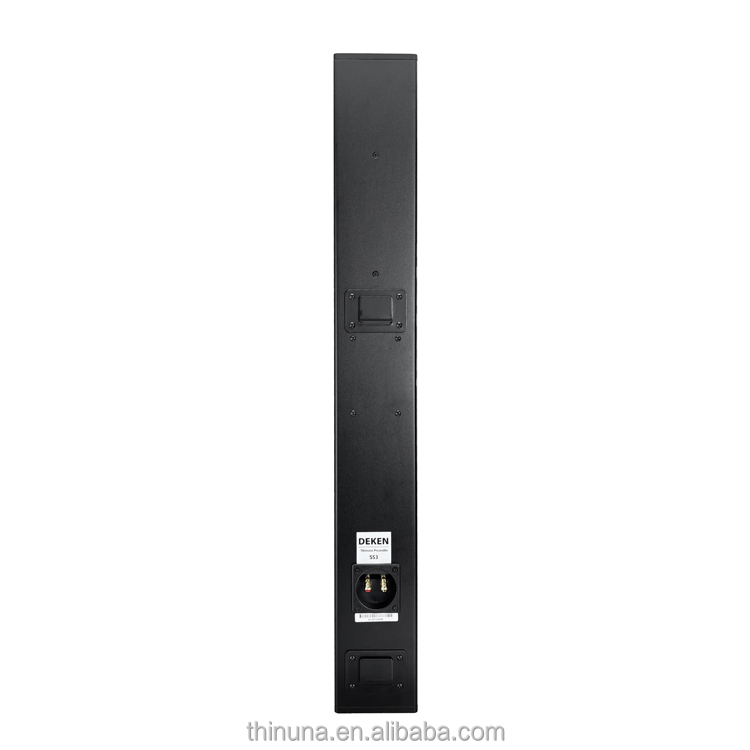

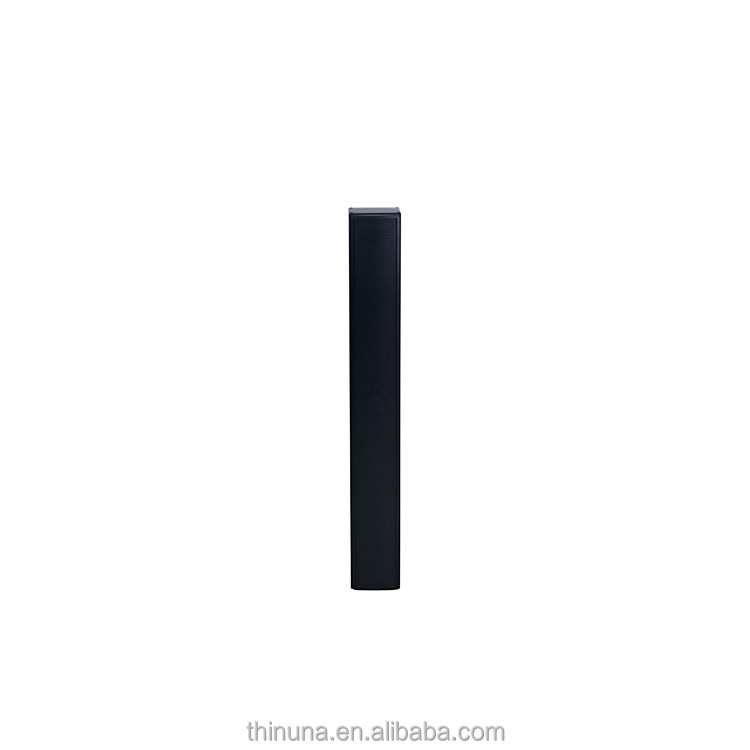

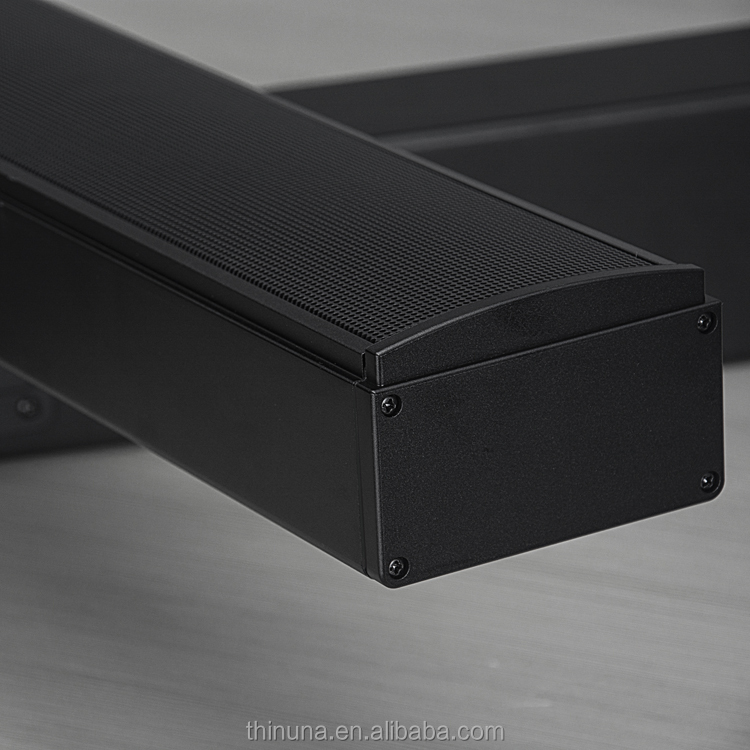

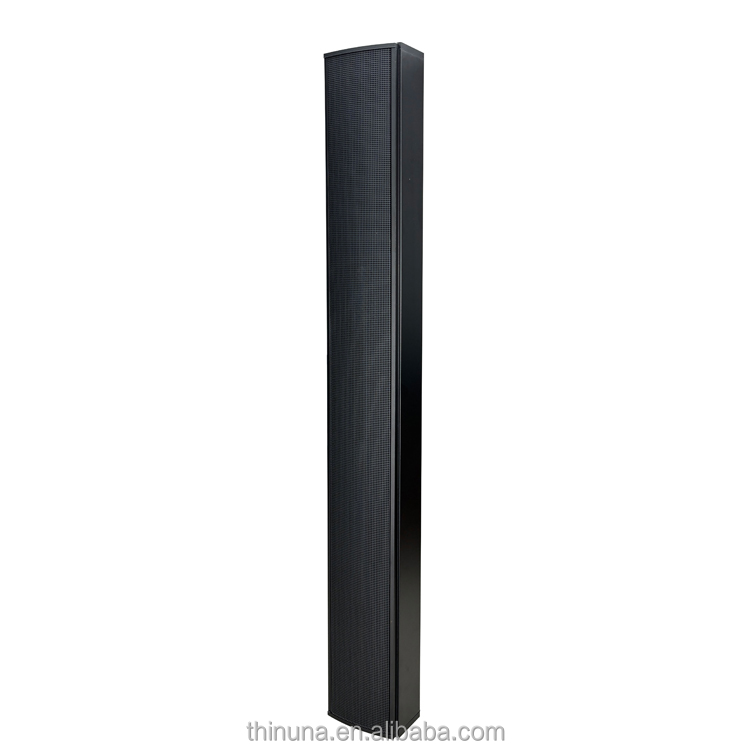

Products Description
Technical parameters :
* System type: 3-unit 2-crossover front-phase-conducting ultra-thin sound column;
* Rated power: 80W; programme power: 160W; peak power: 320W
* Impedance: 4 Ω
* Sensitivity (1M/1W): 88dB
* Maximum SPL: 107dB@80w(113dB@320w)
* Directional Characteristics (-6dB): 120°H x 120°V
* Frequency bandwidth: 90Hz-20KHz (-6dB)
* Transducer Configuration: 8Ω Super Flat Horn × 2, 8Ω tweeter × 1
* Crossover mode: passive
* Crossover point: 1.6kHz
* Adopts ultra-thin planar speaker design, no front cavity effect and time difference effect, effectively improve the conduction distortion, and reduce the split distortion;
* ultra-thin cabinet design, the thickness of the cabinet is only 64mm;
* Using parallel double plucked horn, ultra-thin vibration system and other technologies, the product distortion is small, good transient response, clear sound quality;
* Double voice coil design, higher power tolerance, farther propagation distance;
* Rectangular diaphragm design, high sound conversion efficiency, good directivity, sound pressure level;
* Cabinet material: aluminium panel

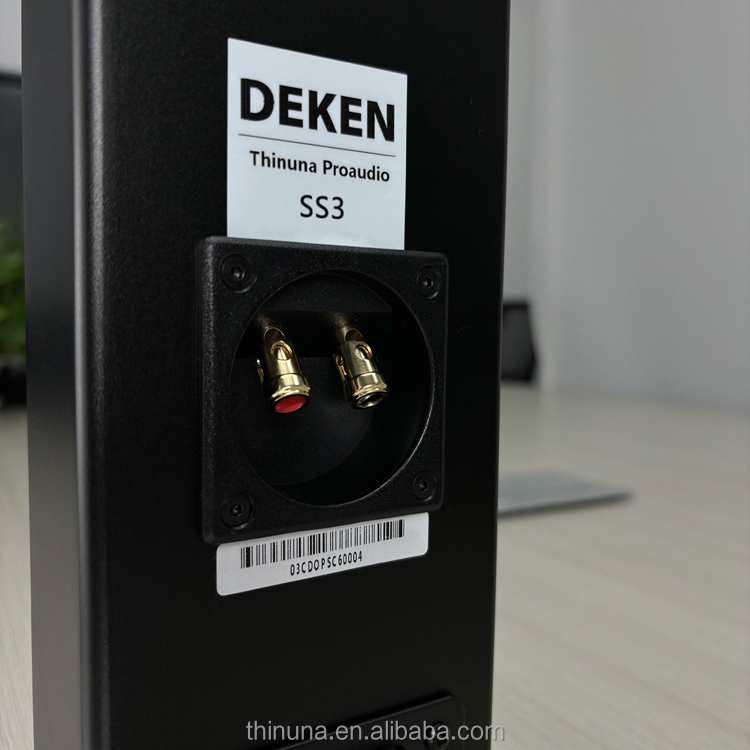

* Connector: crimp terminal
* Cabinet size (H×W×D): 765mm×98mm×64mm
* Weight (each) : 3.6kg
* Mounting accessories: standard with U-shaped snap-on wall mounts

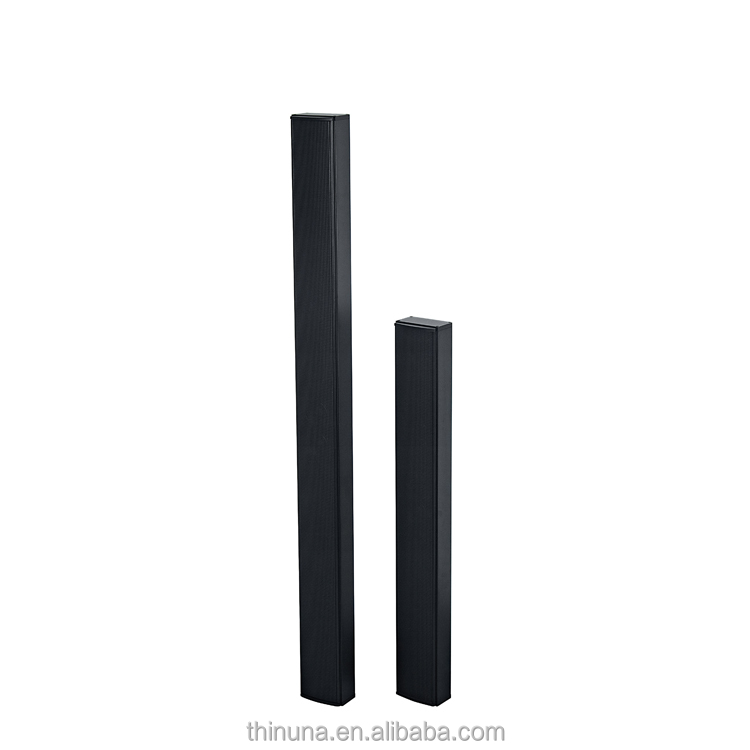

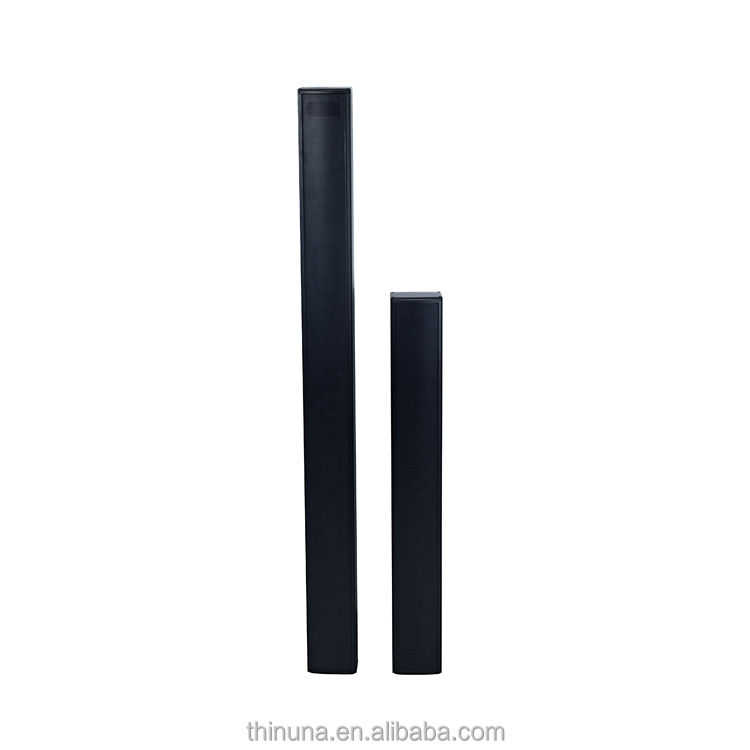

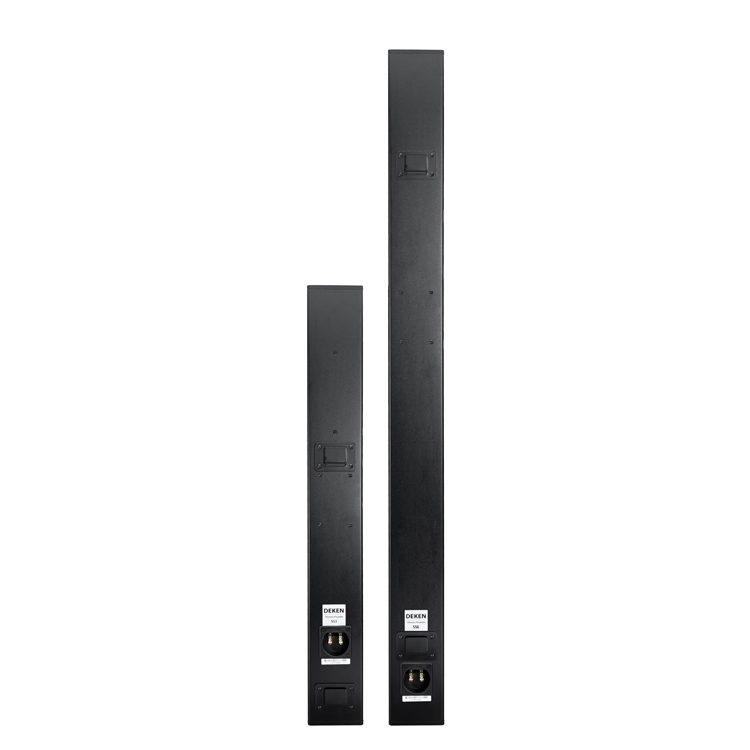

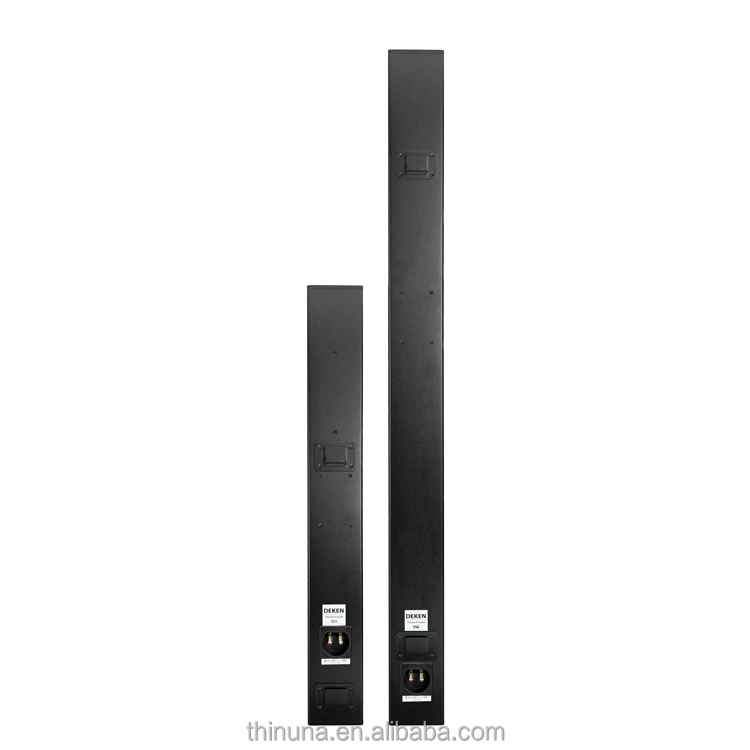

Product name | Full-range point sound source column speaker | |
Model No. | SS3 | SS6 |
System type | 2-way preamble | 2-way preamble |
Rated power | 80W | 160W |
Nominal impedance | 4Ω | 8Ω |
Nominal sensitivity (1W@1m) | 88dB | 88dB |
Frequency response | 90Hz ~ 20kHz | 90Hz ~ 20kHz |
Nominal directivity | 120°H x 120°V | 120°H x 120°V |
Crossover point | 1.6kHz | 2kHz |
Cabinet material | aluminum | aluminum |
Driver | 2x8Ω, Super Speaker +1x4Ω, Tweeter | 4x8Ω, Super Speaker +2x4Ω, Tweeter |
Product size | H765mm*W98mm*D64mm | H1154mm*W98mm*D64mm |
Packing size | H820mm*W173mm*D139mm | H1213mm*W173mm*D139mm |
Net weight | 3.6KG | 5.2KG |
Gross weight | 4.5KG | 6.5KG |
Installation | U-shaped snap-on wall mount | U-shaped snap-on wall mount |
Applications | all kinds of high-grade conference occasions, hotels, business reception centers | |

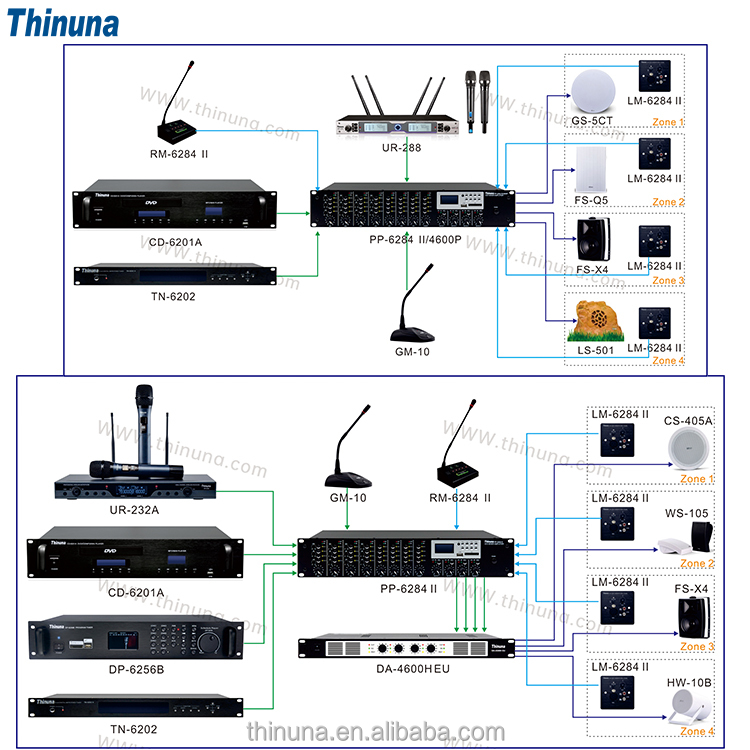

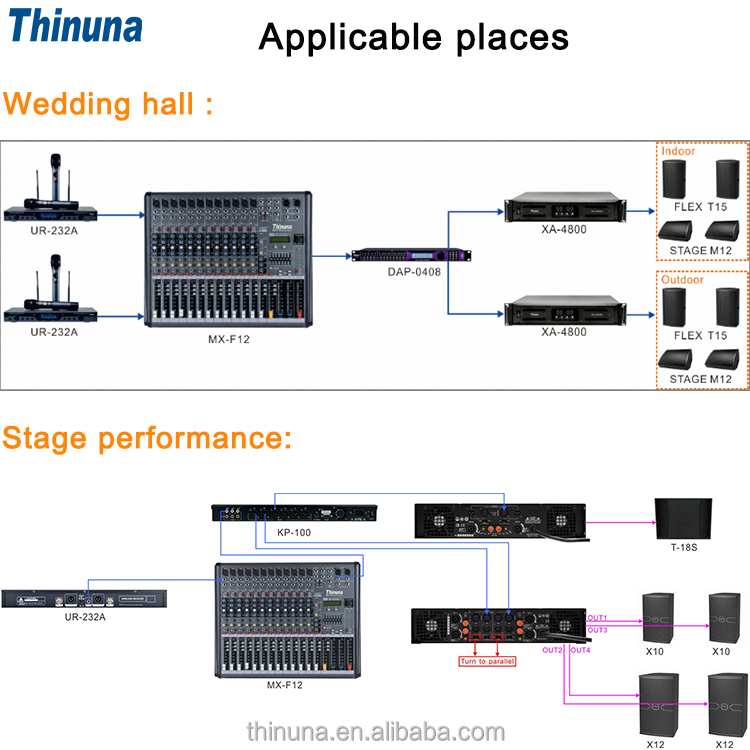

Application Cases
Suitable occasions: Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......

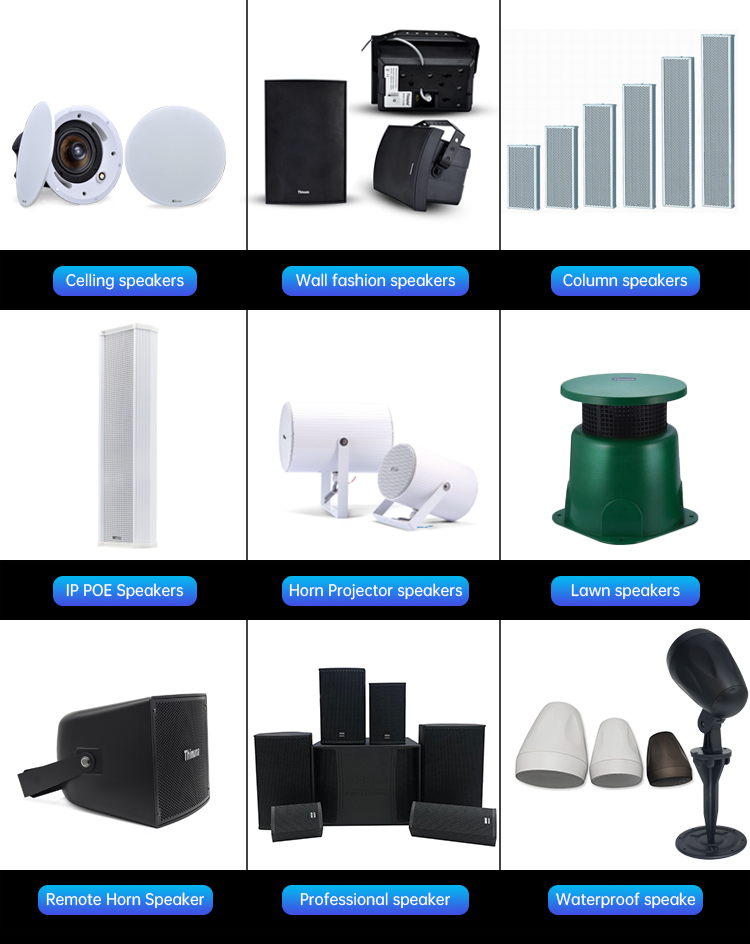

Recommend Products
The main products：
Speaker：Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.Amplifier：Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.Public Address System：IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.

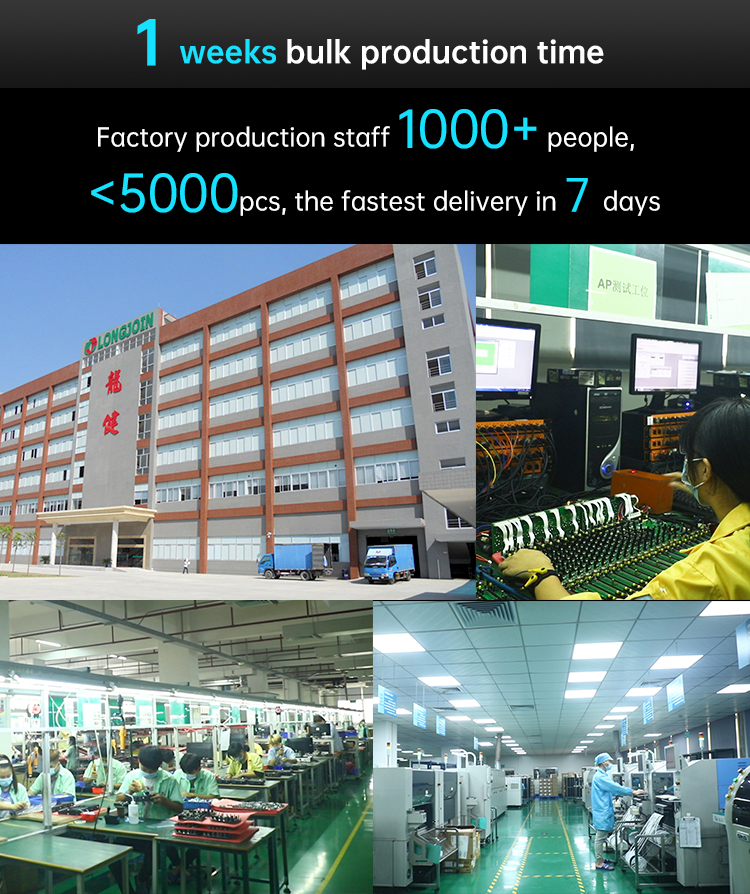

About us

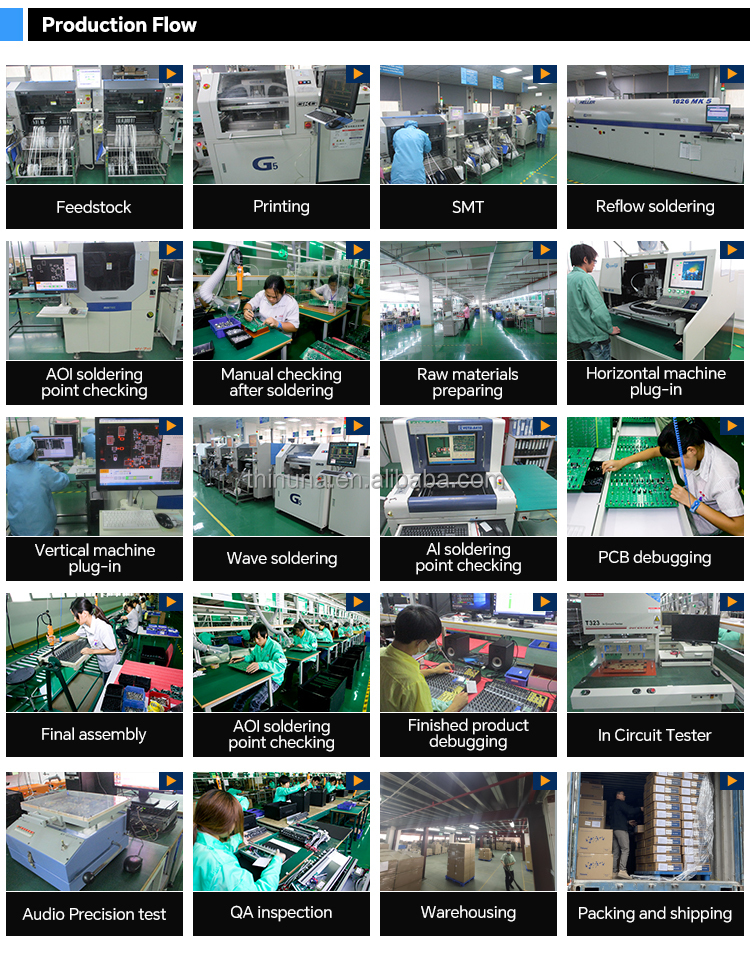

Production Flow

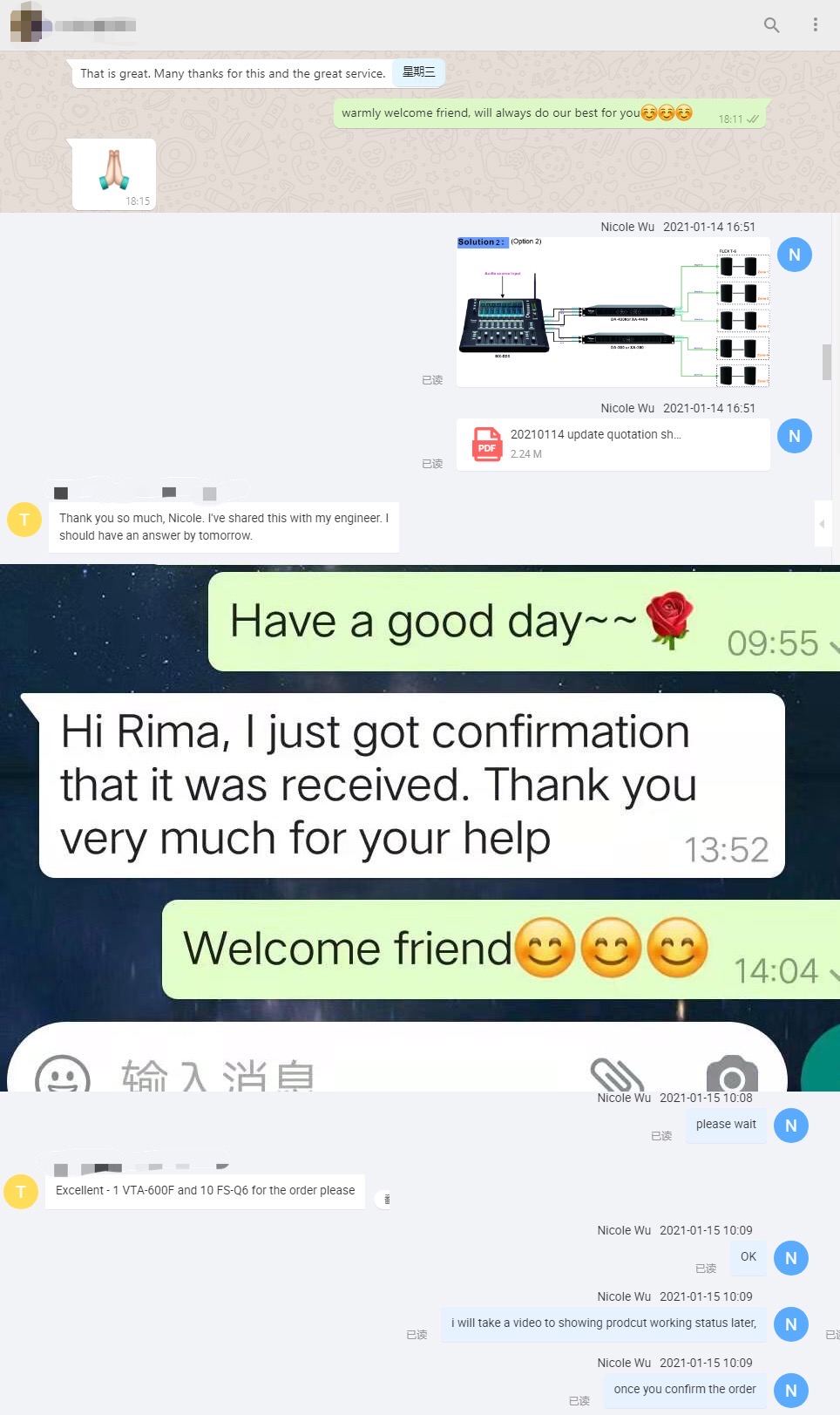

Our customer feedback
Packing & Delivery
FAQ
Q: Are you Manufacturer or Trading company?
A: We have more than 20 years experience in researching and manufacturing
Q: Do you have any qualification certificate?
A:Yes, we have the CCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced engineers to design the expected items as you want, we have much experience at ODM.
Q:What is your payment terms?
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12 months after shipment
Public Address Speaker：in Ceiling Speaker，Pa speaker;Outdoor Wall Speaker，Wall Mount Speaker，indoor and outdoor Column Speaker,Horn Speaker，Waterproof Speaker, Outdoor Speaker,Indoor Speaker, Conference Speaker，Project speaker,Professional speaker,Active Speaker，Garden Speaker，Subwoofer Speaker,wall hanging speaker, lawn speaker, pendant speaker,audio Loudspeaker;Audio
speaker;Wireless speaker;powered speaker;sound speaker;speaker box;subwoofer;sub woofer speaker;Bass speaker;line array speaker;volume controller,radio receiver and professional broadcast cabinets etc.
Public Address Amplifier：Pa Amplifier，Two Channel Power Amplifier , Blue tooth Amplifier，Four Channels Amplifier，High power amplifier, Mixer Amplifier ,Mixing Consoles , Class D amplifier，Class AB amplifier,Audio amplifier，Professional power Amplifier, Professional digital power amplifier,Mixer power amplifier,Power amplifier,Pure amplifier,Professional amplifier,Amplificadores de 2000 w para veiculos ，etc.

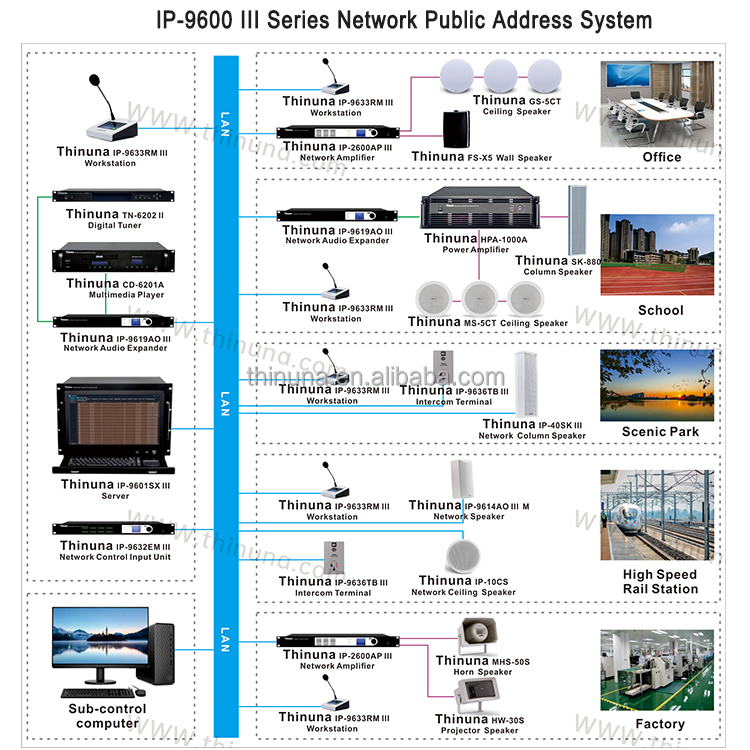

Public Address System：IP network system，IP Network Host，IP Network Soft，SIP onvif ip speaker，IP Amplifier，IP Speaker，SIP speaker,ONVIF/RTSP speaker , IP Microphone;IP Horn Speaker ,IP Ceiling Speaker,IP Column Speaker,Sound system,audio system;public broadcasting system, fire emergency broadcasting system, the campus computer addressable broadcasting system,digital addressable broadcasting system,conference system，home theatre system;IP pa system;
Products can be widely used in sports venues, stadium,gym;conference and exhibition center; hotel, bar;school, hospital;supermarket, park, sauna, stations, factories, residential,home,villa ,business conference, multi-functional hall, government enterprise, conference room,mobile performance, mobile sound reinforcement, band performance, live performance, etc.
