Jiangxi People Electric Transmission and Transformation Co.,Ltd.

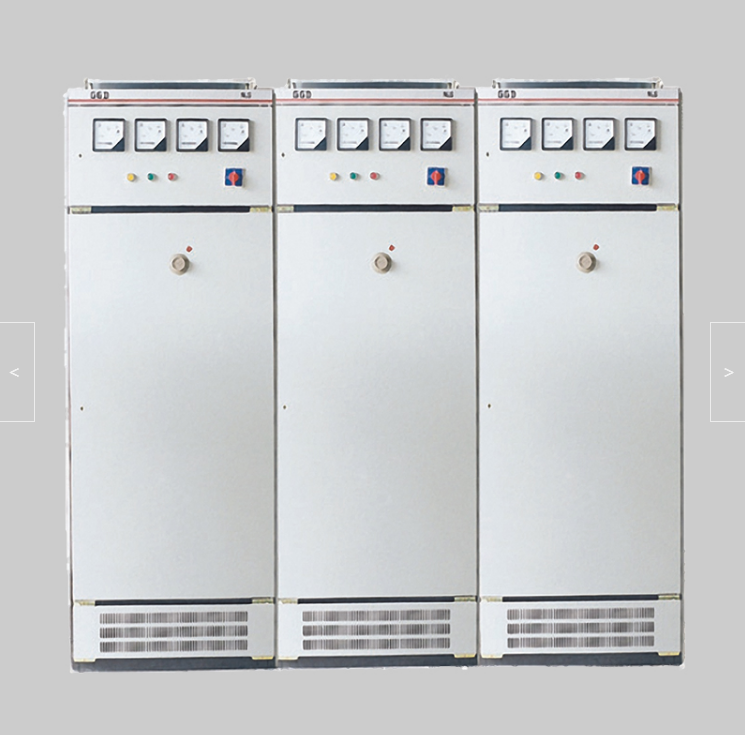

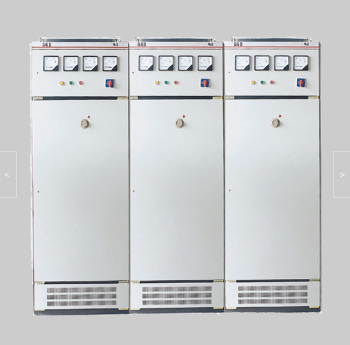

GGD Type AC Low-Voltage Power Distribution Cabinet

GGD Type AC Low-Voltage Power Distribution Cabinet

Model: GGD
Min. order: 1 Piece(s)
Brand: PEOPLE
Sale/Service Area:

China, Japan, South Korea, North Korea, Mongolia, Hong Kong-China, Macao-China, Taiwan-China, Vietnam, Laos, Cambodia, Thailand, Myanmar, Malaysia, Singapore, Indonesia, Brunei, Philippines, East Timor, Nepal, Bhutan, India, Pakistan, Bangladesh, Sri Lanka, Maldives, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, Iran, Iraq, Azerbaijan, Georgia, Armenia, Turkey, Syria, Jordan, Israel, State of Palestine, Saudi Arabia, Bahrain, Qatar, Yemen, Oman, United Arab Emirates, Kuwait, Lebanon, Cyprus, Afghanistan, Norway, Sweden, Finland, Denmark, Iceland, Aland Islands, Bonaire,SaintEustatiusAndSaba, Faroe Islands, Estonia, Latvia, Lithuania, Belarus, Russia, Ukraine, Moldova, Kosovo, Germany, Poland, The Czech Republic, Slovakia, Hungary, Austria, Liechtenstein, Switzerland, United Kingdom, Ireland, Netherlands, Belgium, Luxembourg, France, Monaco, Guernsey, Isle Of Man, Spain, Portugal, Andorra, Italy, Greece, Malta, Vatican, San Marino, Slovenia, Croatia, Albania, Romania, Bulgaria, Serbia, Macedonia, Bosnia and Herzegovina, Montenegro, French Southern Territories, Egypt, Sudan, Tunisia, Algeria, Libya, Morocco, Ethiopia, Somalia, Eritrea, Djibouti, Uganda, Tanzania, Rwanda, Burundi, Seychelles, Kenya, South Sudan, Reunion, Mayotte, Chad, Central African Republic, Cameroon, Equatorial Guinea, Gabon, The Republic of Congo , The Democratic Republic of the Congo, The Democratic Republic of Sao Tome and Principe, Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Republic of Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria, Angola, Zambia, Malawi, Zimbabwe, Mozambique, Republic of Botswana, Namibia, Republic of South Africa, Swaziland, Lesotho, Madagascar, Mauritius, Comoros, Saint Helena, Australia, New Zealand, Papua New Guinea, Solomon Islands, Vanuatu, Micronesia, Marshall Islands, Palau, Fiji, Kiribati, Nauru, Tuvalu, Samoa, Tonga, Niue, The Cook Islands, American Samoa, Cocos Islands, Guam, Northern Mariana Islands, New Caledonia, French Polynesia, Tokelau, Wallis And Futuna, Canada, United States, Mexico, Bahamas, Cuba, Jamaica, Haiti, The Dominican Republic, Saint Kitts and Nevis, Antigua and Barbuda, Commonwealth of Dominica, Saint Lucia, Saint Vincent and the Grenadines, Barbados, Grenada, Trinidad and Tobago, Anguilla, Bermuda, Greenland, Guadeloupe, Jersey, Cayman Islands, Martinique, Montserrat, Saint Pierre And Miquelon, Puerto Rico, Sint Maarten, United States Minor Outlying Islands, U.S.Virgin Islands, Guatemala, Belize, Salvador, Honduras, Nicaragua, Costa Rica, Panama, Colombia, Venezuela, Guyana, Suriname, Ecuador, Peru, Llívia, Brazil, Chile, Argentina, Uruguay, Paraguay, Curacao, Falkland Islands, French Guiana

China, Japan, South Korea, North Korea, Mongolia, Hong Kong-China, Macao-China, Taiwan-China, Vietnam, Laos, Cambodia, Thailand, Myanmar, Malaysia, Singapore, Indonesia, Brunei, Philippines, East Timor, Nepal, Bhutan, India, Pakistan, Bangladesh, Sri Lanka, Maldives, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, Iran, Iraq, Azerbaijan, Georgia, Armenia, Turkey, Syria, Jordan, Israel, State of Palestine, Saudi Arabia, Bahrain, Qatar, Yemen, Oman, United Arab Emirates, Kuwait, Lebanon, Cyprus, Afghanistan, Norway, Sweden, Finland, Denmark, Iceland, Aland Islands, Bonaire,SaintEustatiusAndSaba, Faroe Islands, Estonia, Latvia, Lithuania, Belarus, Russia, Ukraine, Moldova, Kosovo, Germany, Poland, The Czech Republic, Slovakia, Hungary, Austria, Liechtenstein, Switzerland, United Kingdom, Ireland, Netherlands, Belgium, Luxembourg, France, Monaco, Guernsey, Isle Of Man, Spain, Portugal, Andorra, Italy, Greece, Malta, Vatican, San Marino, Slovenia, Croatia, Albania, Romania, Bulgaria, Serbia, Macedonia, Bosnia and Herzegovina, Montenegro, French Southern Territories, Egypt, Sudan, Tunisia, Algeria, Libya, Morocco, Ethiopia, Somalia, Eritrea, Djibouti, Uganda, Tanzania, Rwanda, Burundi, Seychelles, Kenya, South Sudan, Reunion, Mayotte, Chad, Central African Republic, Cameroon, Equatorial Guinea, Gabon, The Republic of Congo , The Democratic Republic of the Congo, The Democratic Republic of Sao Tome and Principe, Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Republic of Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria, Angola, Zambia, Malawi, Zimbabwe, Mozambique, Republic of Botswana, Namibia, Republic of South Africa, Swaziland, Lesotho, Madagascar, Mauritius, Comoros, Saint Helena, Australia, New Zealand, Papua New Guinea, Solomon Islands, Vanuatu, Micronesia, Marshall Islands, Palau, Fiji, Kiribati, Nauru, Tuvalu, Samoa, Tonga, Niue, The Cook Islands, American Samoa, Cocos Islands, Guam, Northern Mariana Islands, New Caledonia, French Polynesia, Tokelau, Wallis And Futuna, Canada, United States, Mexico, Bahamas, Cuba, Jamaica, Haiti, The Dominican Republic, Saint Kitts and Nevis, Antigua and Barbuda, Commonwealth of Dominica, Saint Lucia, Saint Vincent and the Grenadines, Barbados, Grenada, Trinidad and Tobago, Anguilla, Bermuda, Greenland, Guadeloupe, Jersey, Cayman Islands, Martinique, Montserrat, Saint Pierre And Miquelon, Puerto Rico, Sint Maarten, United States Minor Outlying Islands, U.S.Virgin Islands, Guatemala, Belize, Salvador, Honduras, Nicaragua, Costa Rica, Panama, Colombia, Venezuela, Guyana, Suriname, Ecuador, Peru, Llívia, Brazil, Chile, Argentina, Uruguay, Paraguay, Curacao, Falkland Islands, French Guiana
Sample: Free
Main Port of Export: shanghai
Product Details

GGD Type AC Low-Voltage Power Distribution Cabinet

Designed for power plants, substations, and industrial enterprises, the GGD Type AC Low-Voltage Power Distribution Cabinet is applied in 50Hz AC power distribution systems with a rated working voltage of 380V and rated current up to 3150A. It serves as a core device for power conversion, distribution, and control of power and lighting equipment. Featuring high short-circuit breaking capacity (rated short-time withstand current reaching 50kA), flexible circuit configurations, convenient modular combinations, practical functionality, and a novel structure, this product represents one of China's leading assembled fixed-panel switchgear solutions. It complies with standards such as IEC 439 Low-Voltage Switchgear and Controlgear Assemblies and GB 7251 Low-Voltage Switchgear and Controlgear Assemblies.

Key Features

  1. High-Reliability Breaking Capacity

    • Equipped with reinforced busbar systems and arc-extinguishing structures, it withstands 50kA short-circuit currents within 1 second, preventing system-wide failures and ensuring safe operation under overload conditions.

  2. Flexible Circuit Configurations

    • Offers over 100 standardized circuit modules (e.g., incoming power, feeder, motor control), adaptable to diverse loads including motors, lighting systems, and UPS equipment. Customizable layouts cater to specific project requirements.

  3. Modular Combination Design

    • Adopts a 10E (250mm) modular unit structure, enabling parallel installation of multiple cabinets. Each functional unit (e.g., circuit breaker compartment, busbar chamber) is physically separated for easy maintenance and system expansion.

  4. Practical Structural Innovation

    • The steel frame with electrostatic powder coating (IP30 protection grade) resists corrosion and dust. Front-mounted operation panels and rear-mounted maintenance doors optimize on-site accessibility and operational efficiency.

Technical Specifications

ParameterSpecification
Rated VoltageAC 380V (3-phase 5-wire system)
Rated CurrentUp to 3150A
Short-Time Withstand Current (Icw)50kA/1s
Protection ClassIP30 (suitable for indoor use)
Standard Cabinet Dimensions (mm)2200(H) × 800(W) × 600(D)
Compliance StandardsIEC 439, GB 7251

Application Scenarios

  • Power Plants & Substations：As secondary distribution cabinets in 10kV/0.4kV transformer substations, managing power distribution for auxiliary equipment.

  • Industrial Manufacturing：Used in steel mills, chemical plants, and automotive factories to control motors, conveyor systems, and process equipment.

  • Commercial Buildings：Installed in shopping malls, data centers, and hospitals for power distribution to lighting, air conditioning, and emergency power systems.

  • Renewable Energy：Serves as grid-side distribution units for solar/wind farms, integrating energy storage systems and ensuring stable grid connection.

Industry Position & Certifications

  • Benchmark of Assembled Switchgear：Since its launch in the 1990s, it has become a mainstream product in China's low-voltage distribution market, accounting for over 30% of industrial applications.

  • Quality Assurance：Type-tested for dielectric strength, short-circuit endurance, and IP protection, with certifications including CCC and optional CE for export models.

Comparative Advantages (vs. Other Low-Voltage Cabinets)

ModelGGDMNS (Modular Switchgear)GCK (Draw-Out Switchgear)
AdvantagesHigh short-circuit capacity, cost-effective, suitable for fixed loadsFlexible modular design, high protection grade (IP54), ideal for complex systemsCompact structure, quick drawer replacement, suitable for motor control
Typical ApplicationsIndustrial main distribution, fixed-load scenariosCommercial high-rises, data centersMotor Control Centers (MCC)


Value Proposition：
GGD cabinets balance cost-effectiveness with reliability, making them an ideal choice for medium-scale projects requiring stable power distribution. Their standardized design ensures rapid delivery and easy maintenance, while compliance with international standards guarantees long-term compatibility with global power systems. Contact us for customized layout designs and comprehensive technical support
