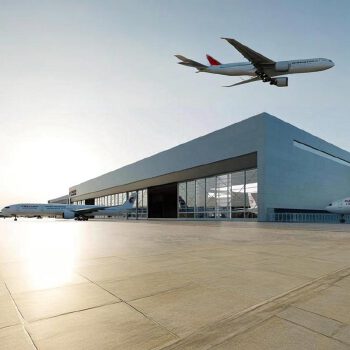

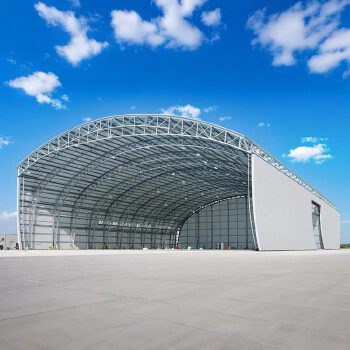

Say goodbye to long construction periods and high costs! A prefabricated steel structure aircraft hangar designed specifically for modern aviation needs, providing you with fast deployment, sturdy, durable, and cost-effective aircraft storage and maintenance space.

Technical parameter overview (can be adjusted according to the project)

Span: 30-100 meters+

Length: Customized as needed

Eaves height/clear height: 6-20 meters+(meets the height requirements of aircraft and maintenance equipment)

Design specifications: comply with international (IBC, EN) or relevant building and aviation regulations of the country where the project is located.

Wind resistance: Meet the local requirements for once-in-a-century wind loads (such as ≥ 0.8 kN/m ²).

Snow pressure resistance: meets the maximum snow load requirements of the local area.

Fire rating: can reach a fire resistance limit of 1-4 hours (depending on requirements).

Anti corrosion grade: hot-dip galvanized (≥ 275g/m ²) or high-performance anti-corrosion coating system.

Core advantages of the product

Factory prefabrication and on-site assembly: The main steel components (beams, columns, purlins, wall frames, etc.) are prefabricated with high precision in the factory, greatly reducing the on-site construction period (50% -70% faster than traditional buildings).

Modular design: Standardized components enable quick assembly, significantly reducing weather effects and manual dependencies, ensuring timely or even early delivery of projects.

Instant availability: Quick deployment means your aircraft can receive protection faster and facility investments can generate benefits faster.

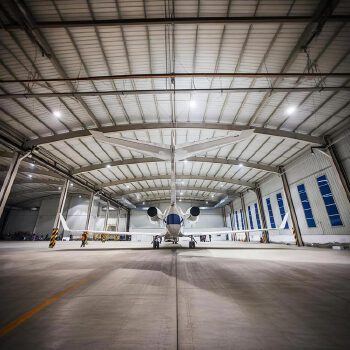

High strength steel: Made of high-quality structural steel (such as Q345B), it has a high strength to weight ratio, making it easy to achieve ultra large spans (up to 100 meters or more). The internal column free design provides completely free ultra large space.

Extraordinary bearing capacity: The carefully designed structural system can withstand the weight of the aircraft, maintenance equipment loads, extreme wind and snow loads in the region (in accordance with local regulations), and strong wind pressure, ensuring safety and stability.

Excellent durability: The steel itself and surface treatment (hot-dip galvanizing or high-performance anti-corrosion coating) endow the building with an ultra long service life (up to 50 years or more), resisting corrosion, moisture, salt spray and other harsh environmental erosion.

Fire safety: The main load-bearing components can be coated with fire-resistant coatings as needed to meet different fire resistance levels.

Infinite possibilities in size: Customize length, width, and height (door height is crucial) based on the type, quantity, and future expansion needs of the aircraft you own (light sport aircraft, helicopters, business jets, regional jets, and even wide body aircraft).

There are various options for large doors, such as segmented lift doors, sliding doors, folding doors, and curved doors, to meet the needs of different aircraft entry and rapid opening and closing.

Rich enclosure system: single-layer/double-layer profiled steel plates, aluminum magnesium manganese panels, sandwich insulation panels (recommended) can be selected for walls and roofs, taking into account insulation, sound insulation, noise reduction, and aesthetic needs.

Functional area integration: It can flexibly plan the office area, maintenance area, spare parts warehouse, lounge and other ancillary spaces into one.

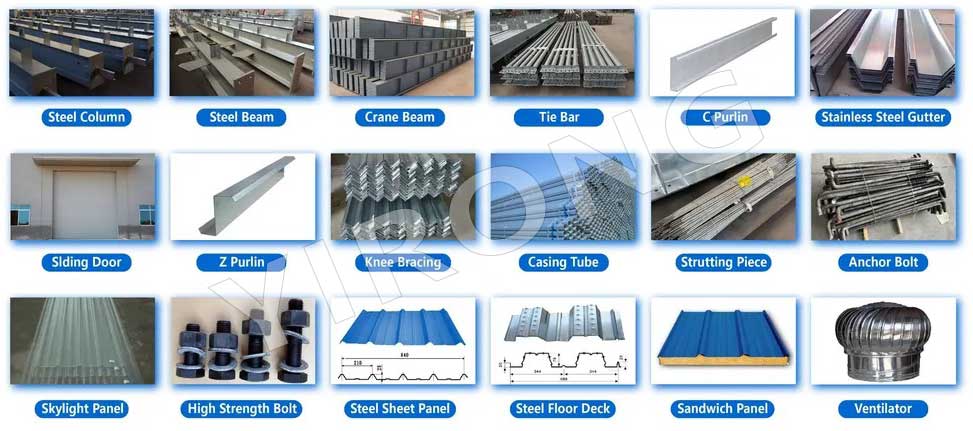

Steel Structure Kits display

Advantages of Steel Structure Hangar

Material cost optimization: The utilization rate of steel structure materials is high, and factory production reduces waste.

Construction cost reduction: Short construction period significantly saves labor, equipment rental, and on-site management costs.

Low maintenance cost: Strong durability, simple and economical maintenance (mainly inspection and maintenance of the enclosure system) in the later stage.

High land utilization rate: Maximize the use of available land in large-span column free spaces.

Long term value guarantee: sturdy and durable, with good resale value, and relatively easy expansion or relocation.

The main body of the steel structure is almost maintenance free, with maintenance mainly focused on inspecting the enclosure system (such as metal plates, sealant) and door system, with much less workload than traditional buildings.

Application scenarios

General aviation airport (FBO): Parking and basic maintenance of business jets, private jets, and helicopters.

Airline base: parking of regional and narrow body aircraft, pre - and post flight inspections, and small-scale scheduled inspections.

Military aviation: fighter jets, transport planes, helicopter hangars.

Helicopter Operations Center: Medical Rescue, Police Aviation, Aviation Operations Helicopter Depot.

Aircraft Maintenance Center (MRO): Build a specialized maintenance hangar.

Private aircraft owners: Exclusive customized hangar.

Aviation education and training institutions: storage and training facilities for teaching aircraft.

Why choose us?

1. The first and largest steel structure & sandwich panels factory in north of China.

2. 20 years experience direct factory with competitive price, stable and controllable quality.

3. Over 100 million dollars of annual output.

4. More than 100000m2 production industrial park.

5. One stop service from design to installation.

6. 10 units free 3D designs & 10 units design structural drawings per day.

7. Professional installation teams in 30+ countries.

8. CE,ISO certificates.

9. Supply quality guarantee for 15 years.

10. Cooperating with 100+ countries & 2000+ partners.

Steel structure production workshop

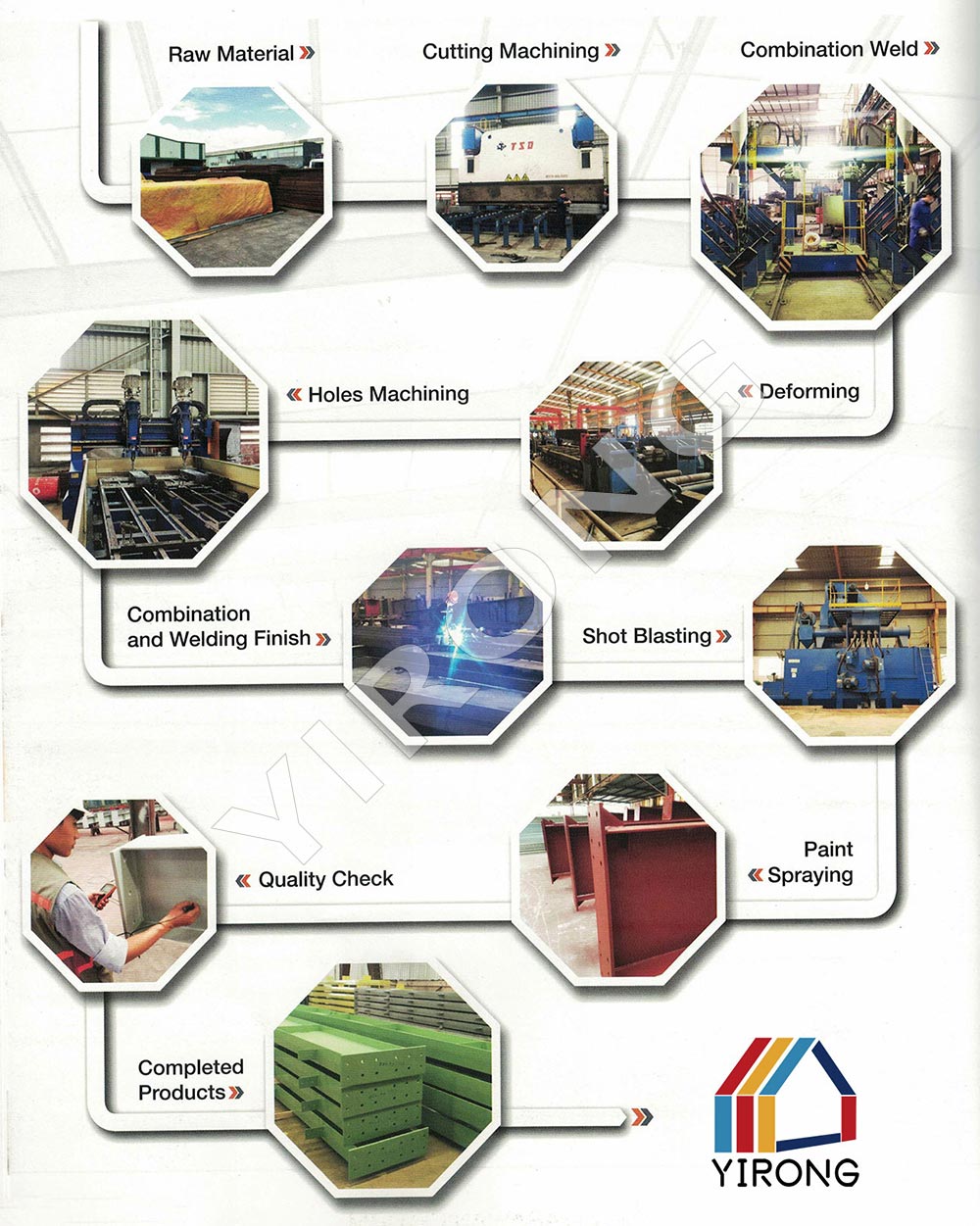

Steel structure production process

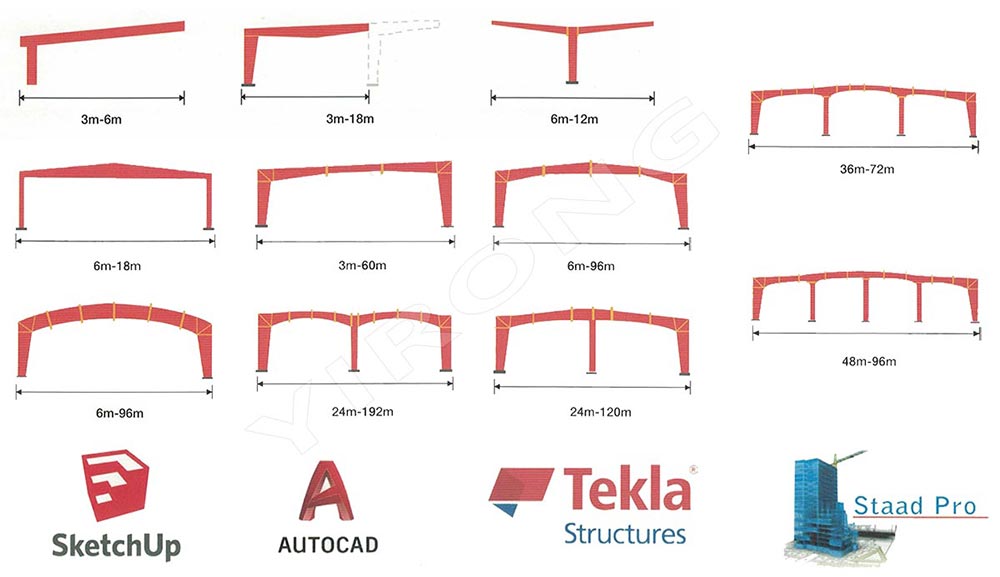

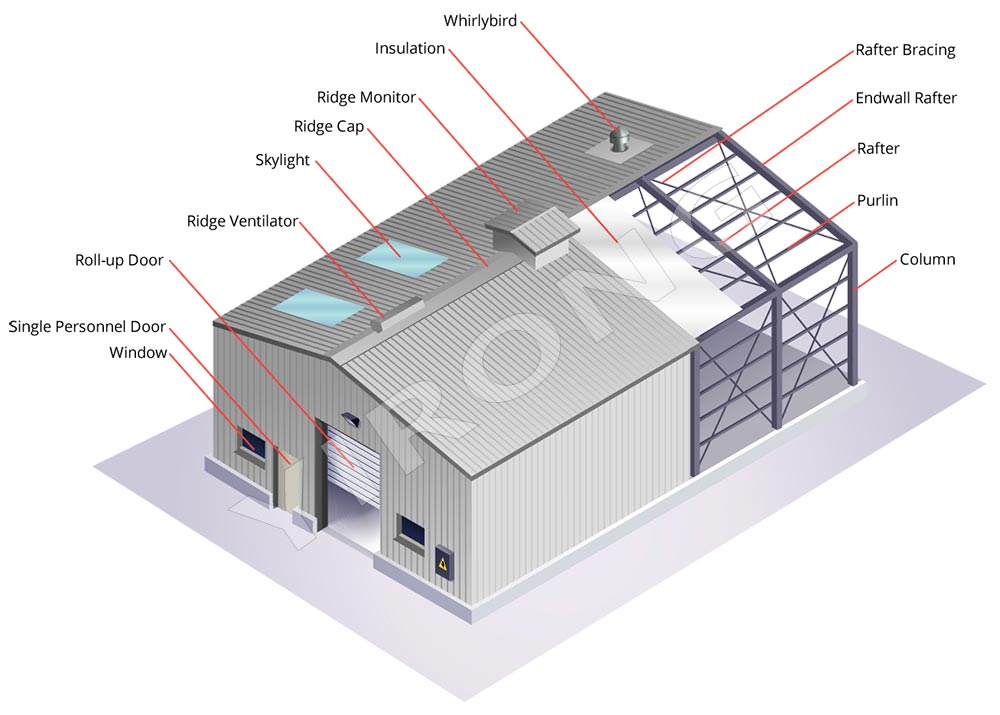

Structural Design of Steel Structure Building
