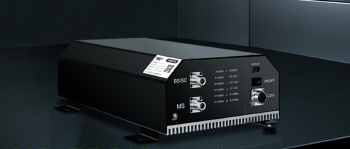

VS-FDQ(C) Trunk Amplifier

VS-FDQ(C) Trunk Amplifier

Model: VS-FDQ(C)
Min. order: 10 Set(s)
Terms of Payment: T/T
Sale/Service Area:

China, Japan, South Korea, North Korea, Mongolia, Hong Kong-China, Macao-China, Taiwan-China, Vietnam, Laos, Cambodia, Thailand, Myanmar, Malaysia, Singapore, Indonesia, Brunei, Philippines, East Timor, Nepal, Bhutan, India, Pakistan, Bangladesh, Sri Lanka, Maldives, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, Iran, Iraq, Azerbaijan, Georgia, Armenia, Turkey, Syria, Jordan, Israel, State of Palestine, Saudi Arabia, Bahrain, Qatar, Yemen, Oman, United Arab Emirates, Kuwait, Lebanon, Cyprus, Afghanistan, Norway, Sweden, Finland, Denmark, Iceland, Aland Islands, Bonaire,SaintEustatiusAndSaba, Faroe Islands, Estonia, Latvia, Lithuania, Belarus, Russia, Ukraine, Moldova, Kosovo, Germany, Poland, The Czech Republic, Slovakia, Hungary, Austria, Liechtenstein, Switzerland, United Kingdom, Ireland, Netherlands, Belgium, Luxembourg, France, Monaco, Guernsey, Isle Of Man, Spain, Portugal, Andorra, Italy, Greece, Malta, Vatican, San Marino, Slovenia, Croatia, Albania, Romania, Bulgaria, Serbia, Macedonia, Bosnia and Herzegovina, Montenegro, French Southern Territories, Egypt, Sudan, Tunisia, Algeria, Libya, Morocco, Ethiopia, Somalia, Eritrea, Djibouti, Uganda, Tanzania, Rwanda, Burundi, Seychelles, Kenya, South Sudan, Reunion, Mayotte, Chad, Central African Republic, Cameroon, Equatorial Guinea, Gabon, The Republic of Congo , The Democratic Republic of the Congo, The Democratic Republic of Sao Tome and Principe, Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Republic of Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria, Angola, Zambia, Malawi, Zimbabwe, Mozambique, Republic of Botswana, Namibia, Republic of South Africa, Swaziland, Lesotho, Madagascar, Mauritius, Comoros, Saint Helena, Australia, New Zealand, Papua New Guinea, Solomon Islands, Vanuatu, Micronesia, Marshall Islands, Palau, Fiji, Kiribati, Nauru, Tuvalu, Samoa, Tonga, Niue, The Cook Islands, American Samoa, Cocos Islands, Guam, Northern Mariana Islands, New Caledonia, French Polynesia, Tokelau, Wallis And Futuna, Canada, United States, Mexico, Bahamas, Cuba, Jamaica, Haiti, The Dominican Republic, Saint Kitts and Nevis, Antigua and Barbuda, Commonwealth of Dominica, Saint Lucia, Saint Vincent and the Grenadines, Barbados, Grenada, Trinidad and Tobago, Anguilla, Bermuda, Greenland, Guadeloupe, Jersey, Cayman Islands, Martinique, Montserrat, Saint Pierre And Miquelon, Puerto Rico, Sint Maarten, United States Minor Outlying Islands, U.S.Virgin Islands, Guatemala, Belize, Salvador, Honduras, Nicaragua, Costa Rica, Panama, Colombia, Venezuela, Guyana, Suriname, Ecuador, Peru, Llívia, Brazil, Chile, Argentina, Uruguay, Paraguay, Curacao, Falkland Islands, French Guiana

China, Japan, South Korea, North Korea, Mongolia, Hong Kong-China, Macao-China, Taiwan-China, Vietnam, Laos, Cambodia, Thailand, Myanmar, Malaysia, Singapore, Indonesia, Brunei, Philippines, East Timor, Nepal, Bhutan, India, Pakistan, Bangladesh, Sri Lanka, Maldives, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, Iran, Iraq, Azerbaijan, Georgia, Armenia, Turkey, Syria, Jordan, Israel, State of Palestine, Saudi Arabia, Bahrain, Qatar, Yemen, Oman, United Arab Emirates, Kuwait, Lebanon, Cyprus, Afghanistan, Norway, Sweden, Finland, Denmark, Iceland, Aland Islands, Bonaire,SaintEustatiusAndSaba, Faroe Islands, Estonia, Latvia, Lithuania, Belarus, Russia, Ukraine, Moldova, Kosovo, Germany, Poland, The Czech Republic, Slovakia, Hungary, Austria, Liechtenstein, Switzerland, United Kingdom, Ireland, Netherlands, Belgium, Luxembourg, France, Monaco, Guernsey, Isle Of Man, Spain, Portugal, Andorra, Italy, Greece, Malta, Vatican, San Marino, Slovenia, Croatia, Albania, Romania, Bulgaria, Serbia, Macedonia, Bosnia and Herzegovina, Montenegro, French Southern Territories, Egypt, Sudan, Tunisia, Algeria, Libya, Morocco, Ethiopia, Somalia, Eritrea, Djibouti, Uganda, Tanzania, Rwanda, Burundi, Seychelles, Kenya, South Sudan, Reunion, Mayotte, Chad, Central African Republic, Cameroon, Equatorial Guinea, Gabon, The Republic of Congo , The Democratic Republic of the Congo, The Democratic Republic of Sao Tome and Principe, Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Republic of Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria, Angola, Zambia, Malawi, Zimbabwe, Mozambique, Republic of Botswana, Namibia, Republic of South Africa, Swaziland, Lesotho, Madagascar, Mauritius, Comoros, Saint Helena, Australia, New Zealand, Papua New Guinea, Solomon Islands, Vanuatu, Micronesia, Marshall Islands, Palau, Fiji, Kiribati, Nauru, Tuvalu, Samoa, Tonga, Niue, The Cook Islands, American Samoa, Cocos Islands, Guam, Northern Mariana Islands, New Caledonia, French Polynesia, Tokelau, Wallis And Futuna, Canada, United States, Mexico, Bahamas, Cuba, Jamaica, Haiti, The Dominican Republic, Saint Kitts and Nevis, Antigua and Barbuda, Commonwealth of Dominica, Saint Lucia, Saint Vincent and the Grenadines, Barbados, Grenada, Trinidad and Tobago, Anguilla, Bermuda, Greenland, Guadeloupe, Jersey, Cayman Islands, Martinique, Montserrat, Saint Pierre And Miquelon, Puerto Rico, Sint Maarten, United States Minor Outlying Islands, U.S.Virgin Islands, Guatemala, Belize, Salvador, Honduras, Nicaragua, Costa Rica, Panama, Colombia, Venezuela, Guyana, Suriname, Ecuador, Peru, Llívia, Brazil, Chile, Argentina, Uruguay, Paraguay, Curacao, Falkland Islands, French Guiana
Sample: Not-Provided
Main Port of Export: shenzhen port
Product Details
Colour Series
White
Design Style
Modern Style

Supports compatibility with major brand main devices such as Motorola, Hytera, and Kenwood

Supports digital/conventional systems and trunking systems


Trunk Amplifier


IP Site Connect

Capacity Plus

Distributed reception system, online patrol system

DMR/PDT system

Excellent heat dissipation performance and reliable quality


Equipment Introduction

Trunk amplifier, abbreviated as trunk amp, is a signal amplification device used when the power becomes low and cannot meet the coverage requirements. When the power of the signal source equipment is difficult to meet the coverage requirements, this equipment can amplify the power of the signal source (usually a microcell) to cover more areas. Trunk amplifiers are mainly used in passive indoor distribution systems to compensate for power loss caused by signal transmission and distribution. It effectively avoids the problem of poor call quality caused by the accumulation of noise levels due to multi-stage amplification in indoor coverage systems.

Technical Specifications

Test ItemIndex Requirement
Frequency RangeDownlink (TX): 350 - 370MHz, 400 - 470MHz; Uplink (RX): 400MHz, 10MHz interval between uplink and downlink
ModelVS-FDQ(C)
Uplink and Downlink Frequency Interval-7 ± 3dBm
Maximum Output PowerDownlink: 40 ± 3dBm; Uplink: -30 dBm
Input Power (No Load)Downlink: -5 - 0dBm; Uplink: -30 dBm
GainDownlink: 48dB ± 3dB; Uplink: 35dB ± 3dB
Voltage Standing Wave Ratio≤ 1.5
Delay≤ 1.5 μs
Spurious EmissionWithin working frequency band: ≤ -30dBm/30kHz; 9kHz - 1GHz (excluding working frequency band): ≤ -36dBm/100kHz; 1GHz - 12.76GHz (excluding working frequency band): ≤ -30dBm/1MHz
IntermodulationWithin working frequency band: ≤ -55dBc/30kHz; 9kHz - 1GHz (including 1GHz): ≤ -36dBm/30kHz; 1GHz - 12.76GHz: ≤ -30dBm/30kHz
Out-of-band SuppressionWithin 2.5MHz of working frequency band edge: ≥ 70dBc; Beyond 2.5MHz of working frequency band edge: ≥ 70dBc at working frequency band edge ± 10MHz
Dimension400×310×110mm
